Product Summary

The MAX4126ESA is a wide-bandwidth, low-power, single-supply rail-to-rail i/o op amplifier. This device can be used in (1)Battery-Powered Instruments; (2)Portable Equipment; (3)Data-Acquisition Systems; (4)Signal Conditioning; (5)Low-Power, Low-Voltage Applications. With their rail-to-rail input common-mode range and output swing, these amplifiers are ideal for low-voltage single-supply operation.

Parametrics

MAX4126ESA absolute maximum ratings: (1)Supply Voltage: 7.5V; (2)IN+, IN-, SHDN Voltage: (VCC + 0.3V) to (VEE - 0.3V); (3)Output Short-Circuit Duration: Continuous; (4)Operating Temperature Range: -40°C to +85°C; (5)Maximum Junction Temperature: +150°C; (6)Storage Temperature Range: -65°C to +160°C; (7)Lead Temperature (soldering, 10s): +300°C.

Features

MAX4126ESA features: (1)+2.7V to +6.5V Single-Supply Operation; (2)Rail-to-Rail Input Common-Mode Voltage Range; (3)Rail-to-Rail Output Voltage Swing; (4)5MHz Gain-Bandwidth Product; (5)650uA Quiescent Current per Amplifier; (6)200uV Offset Voltage; (7)No Phase Reversal for Overdriven Inputs; (8)Drive 250 Loads; (9)Stable with 500pF Capacitive Loads; (10)Unity-Gain Stable.

Diagrams

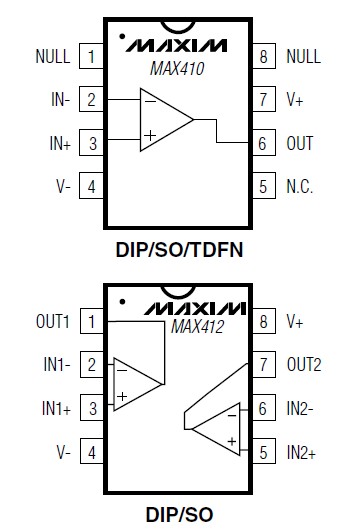

MAX4126ESA pin connection
