Product Summary

The MOC205M is a small outline optocoupler transistor. The MOC205M consists of a gallium arsenide infrared emitting diode optically coupled to a monolithic silicon phototransistor detector, in a surface mountable, small outline, plastic package. The MOC205M is ideally suited for high density applications, and eliminate the need for through-the-board mounting. The applications of the MOC205M include Feedback Control Circuits, Interfacing and coupling systems of different potentials and impedances, General Purpose Switching Circuits, Monitor and Detection Circuits.

Parametrics

MOC205M absolute maximum ratings: (1)Forward Current - Continuous, IF: 60 mA; (2)Forward Current - Peak (PW = 100 μs, 120 pps), IF(pk): 1.0 A; (3)Reverse Voltage VR: 6.0 V; (4)LED Power Dissipation @ TA= 25℃, PD: 90mW; Derate above 25℃, PD: 0.8mW/℃; (5)Collector-Emitter Voltage, VCEO: 70 V; (6)Emitter-Collector Voltage, VECO: 7.0 V; (7)Collector-Base Voltage, VCBO: 70 V; (8)Collector Current-Continuous, IC: 150 mA; (9)Detector Power Dissipation @ TA= 25℃, PD: 150mW, Derate above 25℃, PD: 1.76mW/℃.

Features

MOC205M features: (1)U.L. Recognized (File #E90700, Volume 2); (2)VDE Recognized (File #136616) (add option "V" for VDE approval, i.e, MOC205V-M); (3)Closely Matched Current Transfer Ratios; (4)Convenient Plastic SOIC-8 Surface Mountable Package Style; (5)Minimum BVCEO of 70 Volts Guaranteed; (6)Standard SOIC-8 Footprint, with 0.050" Lead Spacing; (7)Compatible with Dual Wave, Vapor Phase and IR Reflow Soldering; (8)High Input-Output Isolation of 2500 VAC(rms) Guaranteed.

Diagrams

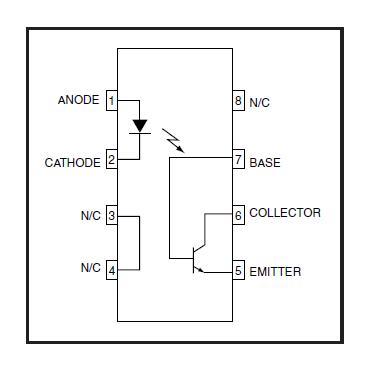

MOC205M block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MOC205M
MOC205M
Fairchild Semiconductor
Transistor Output Optocouplers SO-8 PHOTO TRANS
Data Sheet
0-1: $0.32
1-25: $0.27
25-100: $0.23
100-250: $0.21
MOC205M_Q
MOC205M_Q
Fairchild Semiconductor
Transistor Output Optocouplers SO-8 PHOTO TRANS
Data Sheet
Negotiable
