Product Summary
The MPC852TVR50A0L96R is a 0.18-micron PowerQUICC and can operate up to 100 MHz on the MPC8xx core with a 66-MHz external bus. The MPC852TVR50A0L96R has a 1.8-V core and a 3.3-V I/O operation with 5-V TTL compatibility.
Parametrics
MPC852TVR50A0L96R absolute maximum ratings: (1)Supply voltage: VDDL (core voltage): -0.3 to 3.4 V, VDDH (I/O voltage): -0.3 to 4 V, VDDSYN: -0.3 to 3.4 V, Difference between VDDL to VDDSYN: 100 mV; (2)Input voltage: GND -0.3 to VDDH V; (3)Storage temperature range: -55 to +150 ℃.
Features
MPC852TVR50A0L96R features: (1)Embedded MPC8xx core up to 100 MHz; (2)Maximum frequency operation of the external bus is 66 MHz: 50/66 MHz core frequencies support both 1:1 and 2:1 modes, 80/100 MHz core frequencies support 2:1 mode only; (3)Single-issue, 32-bit core (compatible with the PowerPC architecture definition) with thirty-two 32-bit general-purpose registers (GPRs): The core performs branch prediction with conditional prefetch, without conditional execution, 4-Kbyte data cache and 4-Kbyte instruction cache.

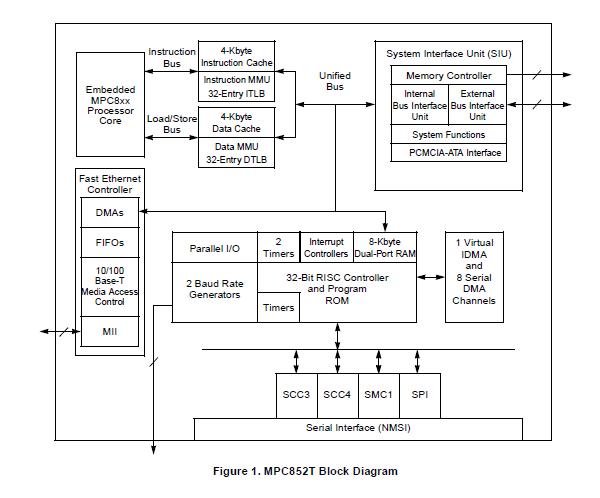

Diagrams
