Product Summary
The ZR364242BGCG is a Low Cost Field Programmable Microcontroller. It integrates high-performance and user-configurable blocks of EPROM, programmable logic, and optional SRAM into one part. The ZR364242BGCG also provides a powerful microcontroller interface that eliminates the need for external glue logic. The part’s integration, small form factor, low power consumption, and ease of use make it the ideal part for interfacing to virtually any microcontroller.
Parametrics
ZR364242BGCG absolute maximum ratings: (1)TSTG Storage Temperature: – 65 + 150℃; (2)Voltage on any Pin With Respect to GND: – 0.6 + 7 V; (3)VPP, Programming Supply Voltage With Respect to GND: – 0.6 + 14 V; (4)VCC Supply Voltage With Respect to GND: – 0.6 + ; (5)ESD Protection >2000 V.
Features
ZR364242BGCG features: (1)Single Supply Voltage: 5 V±10%; (2)Up to 1 Mbit of EPROM; (3)Up to 16 Kbit SRAM; (4)Input Latches; (5)Programmable I/O ports; (6)Page Logic; (7)Programmable Security.

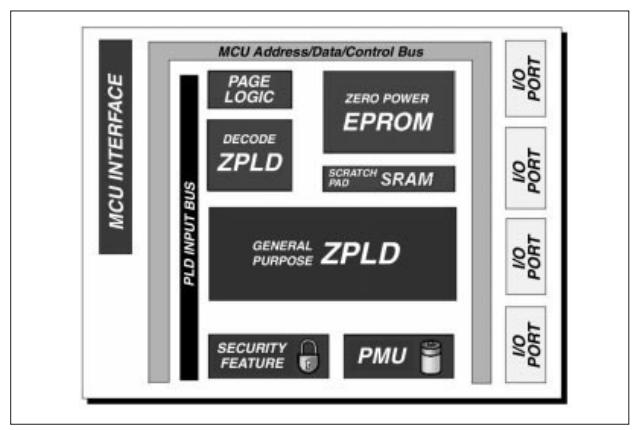

Diagrams
 |
