Product Summary
The MXL101SF is a precision dual op amp that upgrades the performance of popular devices such as the MC1458/MC1558, LM158 and OP221. The Maxim MXL1014 is a precision quad op amp that directly upgrades designs in the industry-standard 14-pin DIP configuration and has specifications similar to the LT1013. The MXL1013 and MXL1014 are pin compatible with industry standards such as the LT1013 and LT1014. The applications of the include Battery-Powered Precision Instrumentation, Strain-Gauge Signal Conditioners, Thermocouple Amplifiers, Instrumentation Amplifiers, 4mA to 20mA Current-Loop Transmitters, Multiple-Limit Threshold Detection, Active Filters, Multiple Gain Blocks.
Parametrics
MXL101SF absolute maximum ratings: (1)Supply Voltage: ±22V; (2)Input Voltage: Equal to Positive Supply Voltage; 5V Below Negative Supply Voltage; (3)Output Short-Circuit Duration: Continuous; (4)Differential Input Voltage: ±30V; (5)Continuous Power Dissipation (TA = +70℃); (6)8-Pin Plastic DIP (derate 9.09mW/℃ above +70℃): 727mW; 8-Pin SO (derate 5.88mW/℃ above +70℃): 471mW; 8-Pin CERDIP (derate 8.00mW/℃ above +70℃): 640mW; 14-Pin Plastic DIP (derate 10.00mW/℃ above +70℃): 800mW; 14-Pin CERDIP (derate 9.09mW/℃ above +70℃): 727mW; 16-Pin Wide SO (derate 9.52mW/℃ above +70℃): 762mW.
Features
MXL101SF features: (1)Single-Supply Operation, Input Voltage Range Extends to Ground; Output Swings to Ground while Sinking Current; (2)150μV Max Offset Voltage; (3)Low Drift: 2μV/℃ Max; (4)0.8nA Max Offset Current; (5)Guaranteed High Gain, 5mA Load Current: 1.5 Million Min; 17mA Load Current: 0.8 Million Min; (6)500μA Max Supply Current per Amplifier; (7)Low Voltage Noise: 0.1Hz to 10Hz, 0.55μVp-p; (8)Lower Current Noise than OP07: 0.07 pA/AHz.

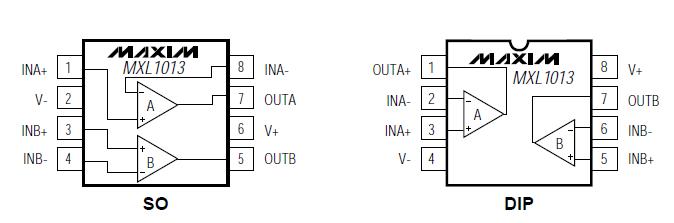

Diagrams
