Product Summary

The P0300SA is a SIDACtor device. The P0300SA protect telecommunications equipment such as modems, line cards, fax machines, and other CPE. The P0300SA is used to enable equipment to meet various regulatory requirements including GR 1089, ITU K.20, K.21 and K.45, IEC 60950, UL 60950, and TIA/EIA-IS-968 (formerly known as FCC Part 68).

Parametrics

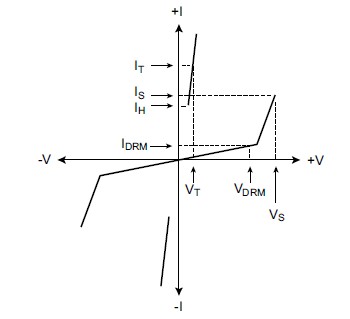

P0300SA absolute maximum ratings: (1)VDRM: 25 Volts; (2)VS: 40 Volts; (3)VT: 4 Volts; (4)IDRM: 5 μAmps; (5)IS: 800 mAmps; (6)IT: 2.2 Amps; (7)IH: 50 mAmps; (8)CO: 110 pF.

Diagrams

P0300SA pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
P0300SA
P0300SA
Littelfuse
Sidacs 50A 25V
Data Sheet
Negotiable
P0300SARP
P0300SARP
Littelfuse
Sidacs 50A 25V
Data Sheet
0-1440: $0.36
1440-2000: $0.35
2000-2500: $0.35
2500-5000: $0.33
P0300SAMCRP
P0300SAMCRP
Littelfuse
Sidacs 50A 25V
Data Sheet
0-1330: $0.44
1330-2000: $0.42
2000-2500: $0.42
2500-5000: $0.38
P0300SAMCLRP
P0300SAMCLRP
Littelfuse
Sidacs 50A 25V
Data Sheet
0-1: $0.72
1-10: $0.61
10-50: $0.57
50-100: $0.54
P0300SALRP
P0300SALRP
Littelfuse
Sidacs 50A 25V
Data Sheet
0-1: $0.64
1-10: $0.54
10-50: $0.52
50-100: $0.48
P0300SAMC
P0300SAMC
Littelfuse
Sidacs 50A 25V
Data Sheet
Negotiable
