Product Summary

The PLRXXL-SC-S43-C1 is a JDSU 10 Gb/s 850 nm XFP optical transceiver is a cost-effective, fully duplex, high-reliability optoelectronic (O/E) transceiver that transmits and receives standard compliant high-speed serial 10 Gb/s optical and electrical signals. The JDSU 10Gb/s XFP optical transceiver provides a single product solution for the IEEE802.3 2005 Clause 52 10GBASE-SR, 10GBASE-SW, and 10GFC optical interconnects that are used in Telecommunication, Data Communication, and Storage Area Network applications. The applications of the PLRXXL-SC-S43-C1 include Local Area Network (LAN), Storage Area Network (SAN), 10 Gigabit Ethernet 10GBASE-SR and 10GBASE-SW applications, 10G Fibre Channel optical interconnects, Ethernet switches and applications, Fibre Channel switches and applications.

Parametrics

PLRXXL-SC-S43-C1 absolute maximum ratings: (1)Storage temperature, TST: -40 to +100℃; (2)Operating case temperature, TOP: -40 to 80℃ (temporary excursions); (3)Relative humidity, RH: 5 to 95 (non-condensing) %; (4)Power supply voltage, VCC2, max: -0.5 to 2.3 V; VCC3, max: -0.5 to 3.8 V.

Features

PLRXXL-SC-S43-C1 features: (1)850 nm optical signals for up to 300 m reach over enhanced; (2)multimode fi ber; (3)Low power consumption (< 1.5 W max); (4)0℃ to 70℃ case temperature operating range; (5)9.95 Gb/s to 10.75 Gb/s serial optical and electrical interface; (6)Durable plastic bail delatch mechanism; (7)LC receptacle optical connector; (8)Bit error rate < 1?0-12; (9)Excellent EMI performance; (10)High reliability; (11)Requires only 3.3 V and 1.8 V power supplies; (12)Digital Diagnostic Monitoring support; (13)XFI AC-coupled electrical interface; (14)Support both line and XFI system loopback.

Diagrams

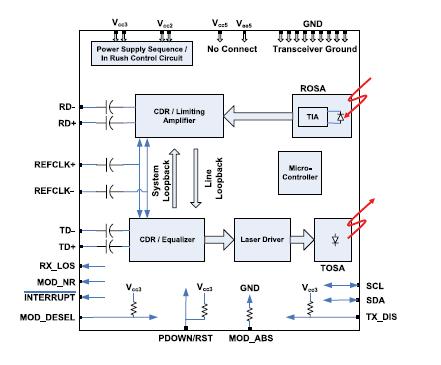

PLRXXL-SC-S43-C1 block diagram
