Product Summary

The RT63095L is a cost-effective, low-voltage single N-MOSFET high-side Power Switch IC. Low switch-on resistance (typ. 100mΩ) and low supply current (typ. 50uA) are realized in this IC. The RT63095L integrates an overcurrent protection circuit, a short fold back circuit, a thermal shutdown circuit and an under-voltage lockout circuit for overall protection. Besides, a slew rate controlled function is embedded for turn-on rising time control. The RT63095L is available in SOT-23-5 and WDFN-8L 2x2 package. The application of the RT63095L include Cellular Phones, Digital still Camera, Hot swap Supplies, Notebook Computers, Personal Communication Devices, Personal Digital Assistants.

Parametrics

RT63095L absolute maximum ratings: (1)Supply Voltage, VIN: 6V; (2)Enable Input Voltage, EN: -0.3V to 6V; (3)Power Dissipation, PD @ TA = 25℃ SOT-23-5: 0.458W; (4)WDFN-8L 2x2: 0.833W; (5)Package Thermal Resistance (Note 2) SOT-23-5, θJA: 218.1℃/W; (6)WDFN-8L 2x2, θJA: 120℃/W; (7)Junction Temperature: 150℃; (8)Lead Temperature (Soldering, 10 sec.): 260℃; (9)ESD Susceptibility (Note 3); (10)HBM (Human Body Model): 4kV.

Features

RT63095L features: (1)100mΩ (typ.) N-MOSFET Switch; (2)Operating Range: 2.7V to 5.5V; (3)Reverse Blocking Current; (4)Under Voltage Lockout; (5)Thermal Protection with Foldback; (6)Over Current Protection; (7)Short Circuit Protection; (8)Slew Rate Limited Turn-On Time 3ms (5V); (9)RoHS Compliant and Halogen Free.

Diagrams

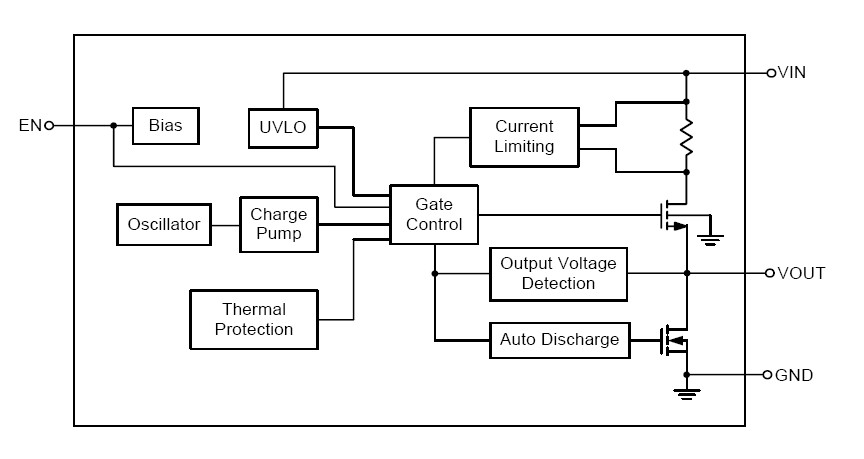

RT63095L block diagram
