S29AL008J70TFI02

S29AL008J70TFI02, CMOS Boot Sector Flash Memory, TSOP, -0.5 V to +12.5 V, 200mA, SPANSION

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 200 :	3.00 / Piece
301 ~ 600 :	2.80 / Piece
601 ~ 1000 :	2.50 / Piece

PartNumber:: S29AL008J70TFI02

Brand:: SPANSION - spansion | Pack: TSOP | D/C: 11+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Alice's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-03

From Other Seller

Part Number:S29AL008J70TFI02
US $2.50 - 3.00
Quantity:

piece

Product Summary

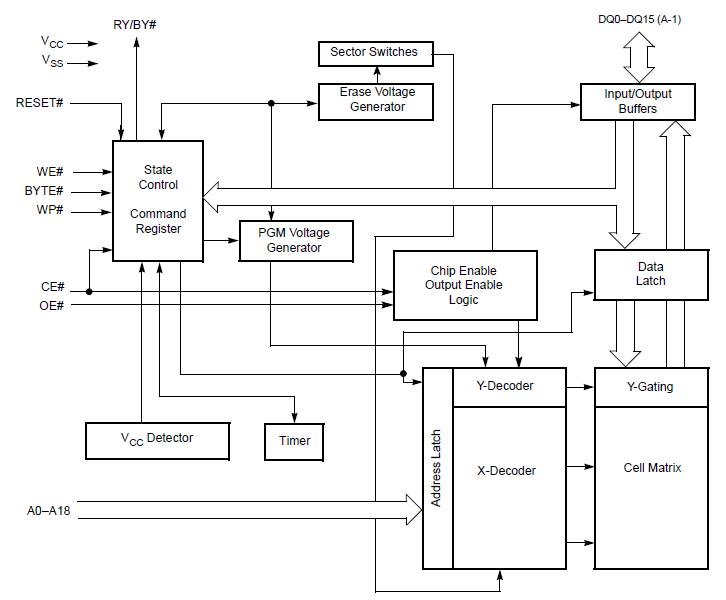

The S29AL008J70TFI02 is an 8 Mbit, 3.0 Volt-only Flash memory organized as 1,048,576 bytes or 524,288 words. The device is offered in 48-ball Fine-pitch BGA (0.8 mm pitch), and 48-pin TSOP packages. The word-wide data (x16) appears on DQ15–DQ0; the byte-wide (x8) data appears on DQ7–DQ0. This device is designed to be programmed in-system with the standard system 3.0 volt VCC supply. A 12.0 V VPP or 5.0 VCC are not required for write or erase operations. The S29AL008J70TFI02 can also be programmed in standard EPROM programmers.

Parametrics

S29AL008J70TFI02 absolute maximum ratings: (1)Storage Temperature, Plastic Packages: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -65℃ to +125℃; (3)Voltage with Respect to Ground: VCC: -0.5 V to +4.0 V; VIO: -0.5 V to +4.0 V; (4)A9, OE#, and ACC: -0.5 V to +12.5 V; (5)All other pins: -0.5 V to VCC + 0.5V; (6)Output Short Circuit Current: 200 mA.

Features

S29AL008J70TFI02 features: (1)Single Power Supply Operation; (2)Full voltage range: 2.7 to 3.6 volt read and write operations for battery-powered applications; (3)Manufactured on 110 nm Process Technology, Fully compatible with 200 nm S29AL008D; (4)Secured Silicon Sector region, 128-word/256-byte sector for permanent, secure identification through an 8-word/16-byte random Electronic Serial Number accessible through a command sequence; May be programmed and locked at the factory or by the customer; (5)Flexible Sector Architecture, One 16 Kbyte, two 8 Kbyte, one 32 Kbyte, and fifteen 64 Kbyte sectors (byte mode); One 8 Kword, two 4 Kword, one 16 Kword, and fifteen 32 Kword sectors (word mode); (6)Sector Group Protection Features, A hardware method of locking a sector to prevent any program or erase operations within that sector; Sectors can be locked in-system or via programming equipment; Temporary Sector Unprotect feature allows code changes in previously locked sectors; (7)Unlock Bypass Program Command, Reduces overall programming time when issuing multiple program command sequences; (8)Top or Bottom Boot Block Configurations Available.
