S29AL032D90TAT04

Product Summary

The S29AL032D90TAT04 is a 32 megabit, 3.0 volt-only flash memory device, organized as 2,097,152 words of 16 bits each or 4,194,304 bytes of 8 bits each. Word mode data appears on DQ0-DQ15; byte mode data appears on DQ0-DQ7. The device is designed to be programmed in-system with the standard 3.0 volt VCC supply, and can also be programmed in standard EPROM programmers. The S29AL032D90TAT04 is available with access times as fast as 70 ns. The devices are offered in 40-pin TSOP, 48-pin TSOP and 48-ball FBGA packages. Standard control pins- chip enable (CE#), write enable (WE#), and output enable (OE#)-control normal read and write operations, and avoid bus contention issues.

Parametrics

S29AL032D90TAT04 absolute maximum ratings: (1)Storage Temperature Plastic Packages: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –65℃ to +125℃; (3)Voltage with Respect to Ground, VCC: –0.5 V to +4.0 V, A9, OE#, RESET#, and WP#/ACC: –0.5 V to +12.5 V, All other pins: -0.5 V to VCC +0.5 V; (4)Output Short Circuit Current: 200 mA.

Features

S29AL032D90TAT04 features: (1)Single power supply operation, Full voltage range: 2.7 to 3.6 volt read and write operations for battery-powered applications; (2)Manufactured on 200 nm process technology, Fully compatible with 0.23 μm Am29LV320D, 0.32 μm; (3)Am29LV033C, and 0.33 μm MBM29LV320E devices; (4)Flexible sector architecture, Boot sector models: Eight 8-Kbyte sectors; sixtythree 64-Kbyte sectors; top or bottom boot block; (5)configurations available; Uniform sector models: Sixty-four 64-Kbyte sectors; (6)Sector Protection features, A hardware method of locking a sector to prevent any program or erase operations within that sector; Sectors can be locked in-system or via programming; (7)equipment; Temporary Sector Unprotect feature allows code changes in previously locked sectors; (8)Unlock Bypass Program Command, Reduces overall programming time when issuing multiple program command sequences; (9)Secured Silicon Sector, 128-word sector for permanent, secure identification through an 8-word random Electronic Serial Number; May be programmed and locked at the factory or by the customer; Accessible through a command sequence.

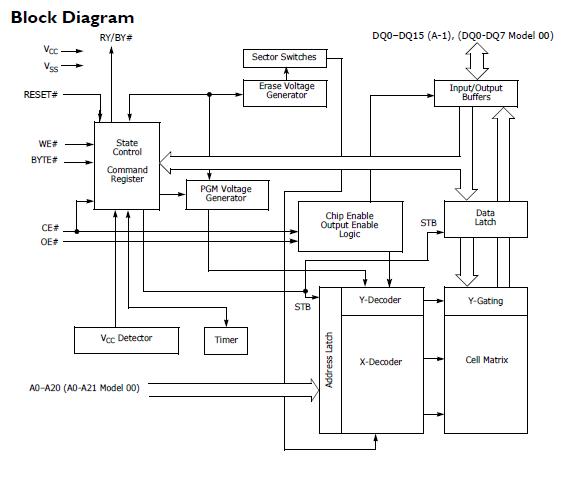

Diagrams
