Product Summary
The S3C2443XL-40N is a mobile application processor. The S3C2443XL-40N provides maximum flexibility, with features like a two-port memory controller that allows designers to choose different DRAM and SROM memory types. The new Samsung processor also includes broad, high-bandwidth connectivity via high-speed USB 2.0 and MMC 4.0 interfaces, along with built-in interfaces to cameras, screens, storage and other peripherals. And the S3C2443XL-40N has been optimized for demanding applications such as portable GPS, drawing on Samsung industry-leading semiconductor expertise and track record supporting major worldwide customers for GPS devices, smartphones and other multimedia and graphics-intensive applications.
Features
S3C2443XL-40N features: (1)Fast ARM920T core: 400/533 MHz, 16KB I/D cache; (2)133MHz multilayer memory bus with; (3)2-channel controller: DRAM up to 1GB of mobile DDR/SDRAM, SROM NAND flash (SLC/MLC/OneNAND); (4)Flexible arbitration scheme with priority and round robin; (5)Low power management; (6)Normal, slow, idle, stop and sleep modes; (7)Clock control of each peripheral; (8)LCD display for STN/TFT panels; (9)High-speed (480Mbps) USB 2.0 device (+PHY); (10)Full-speed USB 1.1 host (+PHY); (11)HS MMC v4.0 (8-bit data, up to 52MHz) and SD/SDIO/MMC; (12)6-channel DMA; (13)PC card and ATA controller; (14)Support of Windows CE, Windows Mobile, Linux; (15)PoP or 400-pin FBGA.

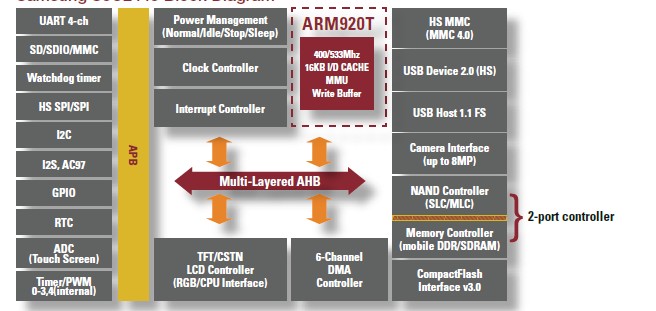

Diagrams
