Product Summary
The SAA7130HC is a single chip solution to digitize and decode video, and capture it through the PCI-bus. Special means are incorporated to maintain the synchronization of audio to video. The SAA7130HC offers versatile peripheral interfaces (GPIO), that support various extended applications, e.g. analog audio pass-through for loop back cable to the sound card, or capture of DTV and DVB transport streams, such as Vestigial Side Band (VSB), Orthogonal Frequency Division Multiplexing (OFDM) and Quadrature Amplitude Modulation (QAM) decoded digital television standards.
Parametrics
SAA7130HC absolute maximum ratings: (1)VDDD digital supply voltage: -0.5 to +4.6 V; (2)VDDA analog supply voltage: -0.5 to +4.6 V; (3)VSS voltage difference between pins VSSA and VSSD: 100 mV; (4)VIA input voltage at analog inputs: -0.5 to +4.6 V; (5)VI(n) input voltage at pins XTALI, SDA and SCL: -0.5 to VDDD + 0.5 V; (6)VID input voltage at digital I/O stages outputs in 3-state: -0.5 to +4.6 V; (7)outputs in 3-state; 3.0V<VDDD < 3.6 V: -0.5 to +5.5 V; (8)Tstg storage temperature: -65 to +150℃; (9)Tamb ambient temperature: 0 to 70℃; (10)Vesd electrostatic discharge voltage note 1: -250 to +200 V; (11)note 2: -3500 to +3500 V.
Features
SAA7130HC features: (1)Package: LQFP128; (2)Power supply: 3.3 V only; (3)Power consumption of typical application: 1 W; (4)Power-down state (D3-hot): <20 mW; (5)All interface signals 5 V tolerant; (6)Reference designs available; (7)SDK for Windows (95, 98, NT, 2000 and XP), Video for; (8)Windows (VfW) and Windows Driver Model (WDM).

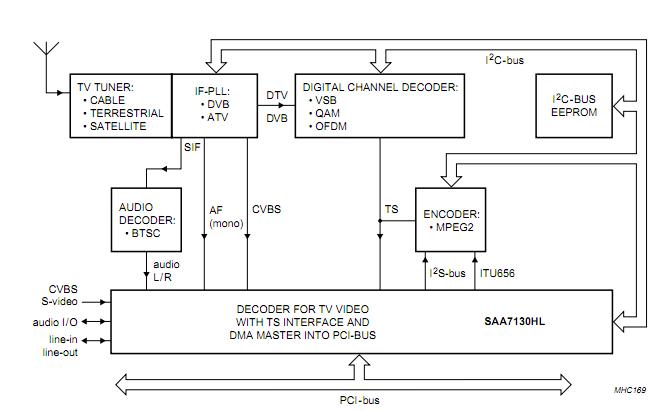

Diagrams
