Product Summary
The SDIN5D2-4G is a 28 V gold metallized epitaxial silicon NPN planar transistor designed for VHF FM broadcast transmitters. This device utilizes diffused emitter resistors to achieve infinite VSWR at rated operating conditions.
Parametrics
SDIN5D2-4G absolute maximum ratings: (1)VCBO, Collector-Base Voltage: 60 V; (2)VCEO, Collector-Emitter Voltage: 25 V; (3)VCES, Collector-Emitter Voltage: 60 V; (4)VEBO, Emitter-Base Voltage: 4.0 V; (5)IC, Device Current: 16 A; (6)PDISS, Power Dissipation: 230 W; (7)TJ, Junction Temperature: +200℃; (8)TSTG, Storage Temperature: -65 to +150℃.
Features
SDIN5D2-4G features: (1)108 MHz; (2)28 VOLTS; (3)Efficiency 75%; (4)Common emitter; (5)Gold metallization POUT = 150 W MIN; (6)WITH 9.2 dB GAIN.

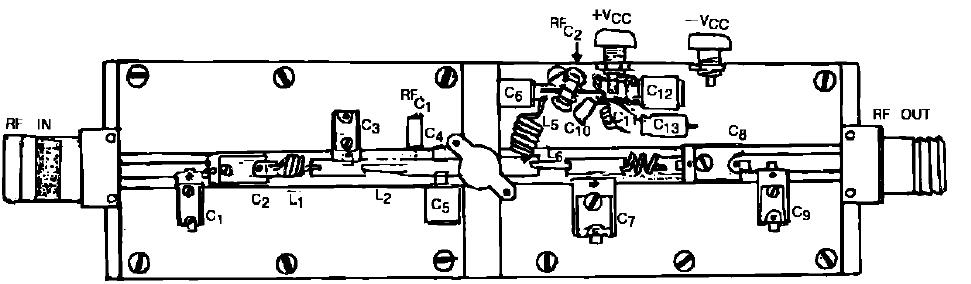

Diagrams
