SN74AHC1G32DBVR

SN74AHC1G32DBVR, single 2-input positive-or gate, SOP, -0.5 V to 7 V, ±20 mA, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 300 :	3.00 / Piece
301 ~ 600 :	2.80 / Piece
601 ~ 1000 :	2.50 / Piece

PartNumber:: SN74AHC1G32DBVR

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Alice's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-11

From Other Seller

Part Number:SN74AHC1G32DBVR
US $2.50 - 3.00
Quantity:

piece

Product Summary

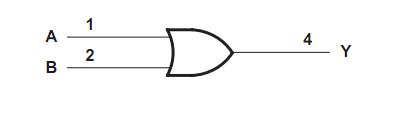

The SN74AHC1G32DBVR is a single 2-input positive-or gate.

Parametrics

SN74AHC1G32DBVR absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 7 V; (2)Input voltage range, VI: -0.5 V to 7 V; (3)Output voltage range, VO: -0.5 V to VCC + 0.5 V; (4)Input clamp current, IIK (VI < 0): -20 mA; (5)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (6)Continuous output current, IO (VO = 0 to VCC): ±25 mA; (7)Continuous current through VCC or GND: ±50 mA; (8)Package thermal impedance, θJA (see Note 2): DBV package: 206℃/W; DCK package: 256℃/W; DRL package 142℃/W; (9)Storage temperature range, Tstg: -65℃ to 150℃.

Features

SN74AHC1G32DBVR features: (1)Operating Range of 2 V to 5.5 V; (2)Max tpd of 6.5 ns at 5 V; (3)Low Power Consumption, 10-μA Max ICC; (4)±8-mA Output Drive at 5 V; (5)Schmitt Trigger Action at All Inputs Makes the Circuit Tolerant for Slower Input Rise and Fall Time; (6)Latch-Up Performance Exceeds 250 mA Per JESD 17.
