Product Summary
The SN75HVD3082 is a half-duplex transceiver designed for RS-485 data bus networks. Powered by a 5-V supply, the device is fully compliant with TIA/EIA-485A standard. With controlled transition times, these devices are suitable for transmitting data over long twisted-pair cables. The SN75HVD3082 is optimized for signaling rates up to 200 kbps. The applications of the SN75HVD3082 include Energy Meter Networks, Motor Control, Power Inverters, Industrial Automation, Building Automation Networks, Battery-Powered Applications, Telecommunications Equipment.
Parametrics
SN75HVD3082 absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 7 V; (2)Voltage range at A or B: -9 V to 14 V; (3)Voltage range at any logic pin: -0.3 V to VCC + 0.3 V; (4)Receiver output current: -24 mA to 24 mA; (5)Voltage input range, transient pulse, A and B, through 100: -50 V to 50 V; (6)Junction temperature, TJ: 170℃; (7)Continuous total power dissipation: Refer to Package Dissipation Table.
Features
SN75HVD3082 features: (1)Available in Small MSOP-8 Package; (2)Meets or Exceeds the Requirements of the TIA/EIA-485A Standard; (3)Low Quiescent Power, 0.3 mA Active Mode; 1 nA Shutdown Mode; (4)1/8 Unit Load—Up to 256 Nodes on a Bus; (5)Bus-Pin ESD Protection Up to 15 kV; (6)Industry-Standard SN75176 Footprint; (7)Failsafe Receiver (Bus Open, Bus Shorted, Bus Idle); (8)Glitch-Free Power Up/Down Bus Inputs and Outputs.

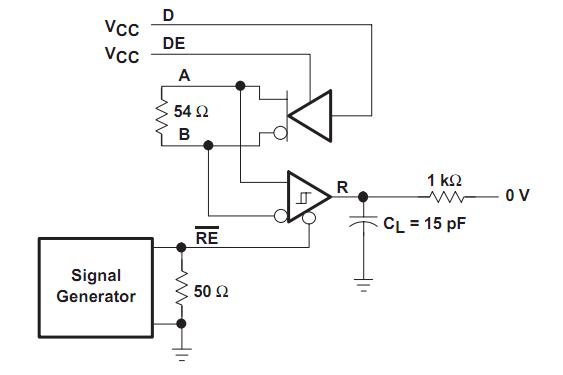

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN75HVD3082E |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
SN75HVD3082ED |
Texas Instruments |
Buffers & Line Drivers RS485 Low Power |
Data Sheet |
|
|
||||||||||||
|
SN75HVD3082EDGKG4 |
Texas Instruments |
RS-485 Interface IC SINGLE INVERTER GATE |
Data Sheet |
|
|
||||||||||||
|
SN75HVD3082EDGK |
Texas Instruments |
Buffers & Line Drivers Low-Power RS-485 Transceiver |
Data Sheet |
|
|
||||||||||||
|
SN75HVD3082EDG4 |
Texas Instruments |
Bus Transceivers Low-Power RS-485 Transceiver |
Data Sheet |
|
|
||||||||||||
|
SN75HVD3082EDGKR |
Texas Instruments |
Bus Transceivers Low-Power RS-485 Transceiver |
Data Sheet |
|
|
||||||||||||
|
SN75HVD3082EDR |
Texas Instruments |
Buffers & Line Drivers RS485 Low Power |
Data Sheet |
|
|
||||||||||||
|
SN75HVD3082EP |
Texas Instruments |
Buffers & Line Drivers Low-Power RS-485 Transceiver |
Data Sheet |
|
|
||||||||||||
