SST85LD1004M-60-PC-LBTE

Product Summary

The SST85LD1004M-60-PC-LBTE is an NANDrive integrated circuit (IC). The SST85LD1004M-60-PC-LBTE is a high-performance,
fully-integrated, embedded flash solid state drive. The device combines an integrated ATA Controller and a 128/256/512 MB NAND Flash die in a multi-chip package. The product is well suited for solid state mass storage applications offering new and expanded functionality while enabling cost effective designs.

Parametrics

SST85LD1004M-60-PC-LBTE absolute maximum ratings: (1)Temperature Under Bias: -55 to +125℃; (2)Storage Temperature: -65 to +150℃; (3)D.C. Voltage on Pins1 I3, I4, O4, and O5 to Ground Potential: -0.5V to VDD+0.5V; (4)Transient Voltage (<20 ns) on Pins1 I3, I4, O4, and O5 to Ground Potential: -2.0V to VDD+2.0V; (5)D.C. Voltage on Pins1 I1, I2, O1, O2, and O6 to Ground Potential: -0.5V to VDDQ+0.5V; (6)Transient Voltage (<20 ns) on Pins1 I1, I2, O1, O2, and O6 to Ground Potential: -2.0V to VDDQ+2.0V; (7)Package Power Dissipation Capability (TA = 25℃): 1.0W; (8)Through Hole Lead Soldering Temperature (10 Seconds): 300℃; (9)Surface Mount Solder Reflow Temperature: 260℃ for 10 seconds; (10)Output Short Circuit Current: 50 mA.

Features

SST85LD1004M-60-PC-LBTE features: (1)Industry Standard ATA/IDE Bus Interface, Host Interface: 8- or 16-bit access; Supports up to PIO Mode-4; Supports up to Multi-word DMA Mode-2; (2)Low Power, 3.3V Power Supply; (3)5.0V or 3.3V host interface through VDDQ pins; (4)Low current operation: Active mode: 80 mA Max; Sleep mode: 150μA Max; (5)Power Management Unit, Immediate disabling of unused circuitry; (6)Expanded Data Protection, WP_PD# pin configurable by firmware for prevention of data overwrites; Added data security through user-selectable protection zones; (7)20-byte Unique ID for Enhanced Security, Factory Pre-programmed 10-byte Unique ID; User-Programmable 10-byte ID; (8)Integrated Voltage Detector, Industrial Temperature Device requires external POR# signal; (9)Endurance, Greater than 100,000 cycles with data wear leveling; (10)Data Retention, 10 years.

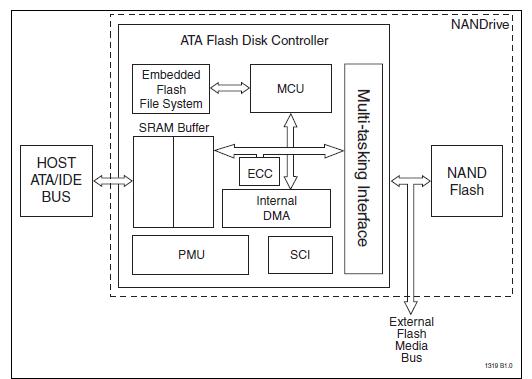

Diagrams
