Product Summary
The STLC3055NAF is a WLL & ISDN-TA subscriber line interface circuit specifically designed for WLL (Wireless Local Loop) and ISDN Terminal Adaptors and VoIP applications. One of the distinctive characteristic of the STLC3055NAF device is the ability to operate with a single supply voltage (from +5.5V to +12V) and self generate the negative battery by means of an on chip DC/DC converter controller that drives an external MOS switch.
Parametrics
STLC3055NAF absolute maximum ratings: (1)Vpos, Positive Supply Voltage: -0.4 to +13 V; (2)A/BGND, AGND to BGND: -1 to +1 V; (3)Vdig, Pin D0, D1, D2, DET, CKTTX: -0.4 to 5.5 V; (4)Tj, Max. junction Temperature: 150℃; (5)Vbtot, Vbtot=|Vpos|+|Vbat|. (Total voltage applied to the device supply pins): 90 V; (6)ESD rating, Human Body Model: ±1750 V; Charged Device Model: ±500 V.
Features
STLC3055NAF features: (1)monochip slic optimised for wll & voip applications; (2)implement all key features of the borsht function; (3)single supply (5.5 to 12v); (4)built in dc/dc converter controller; (5)soft battery reversal with programmable transition time; (6)on-hook transmission; (7)programmable off-hook detector threshold; (8)metering pulse generation and filter; (9)integrated ringing; (10)integrated ring trip; (11)parallel control interface (3.3v logic level); (12)programmable constant current feed; (13)surface mount package; (14)integrated thermal protection; (15)dual gain value option; (16)bcd iii s, 90v technology; (17)-40 to +85℃ operating range.

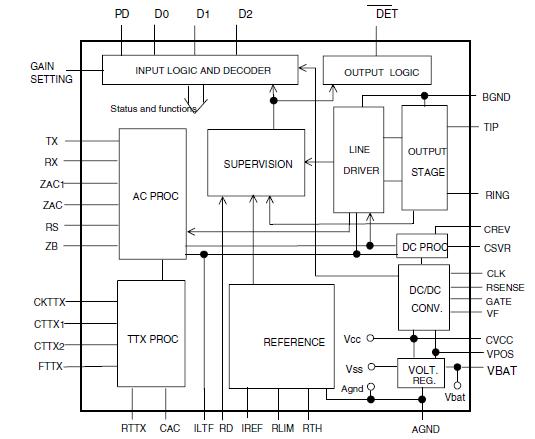

Diagrams
