STM32F103

STM32F103, High-density performance line ARM, 64LQFP, 4V, 72MHz, STMicroelectronics

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 300 :	3.00 / Piece
301 ~ 600 :	2.80 / Piece
601 ~ 1000 :	2.50 / Piece

PartNumber:: STM32F103

Brand:: STMicroelectronics - ST | Pack: QFP | D/C: 11+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Alice's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-27

From Other Seller

Part Number:STM32F103
US $2.50 - 3.00
STM32F103C8T6 ST LQFP48

US $1.00 - 1.00 / Piece
(0) Remove
STM32F103C8T6,ARM Cortex M3,FLASH,MCU

US $2.98 - 3.15 / Piece
(0) Remove
Quantity:

piece

Product Summary

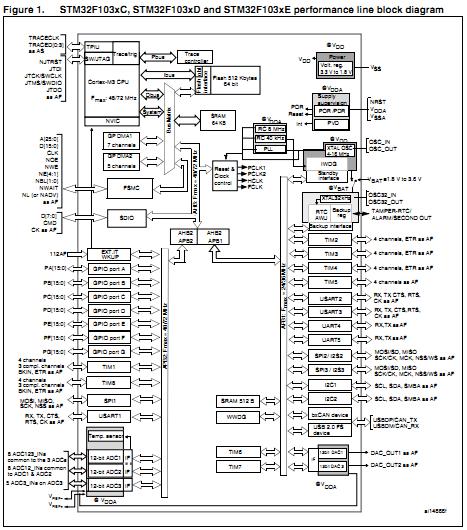

The STM32F103 is a High-density performance line ARM-based 32-bit MCU with 256 to 512KB Flash, USB, CAN, 11 timers, 3 ADCs, 13 communication interfaces. The STM32F103 incorporates the high-performance ARM Cortex-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 512 Kbytes and SRAM up to 64 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. The STM32F103 offers three 12-bit ADCs, four general-purpose 16-bit timers plus two PWM timers, as well as standard and advanced communication interfaces: up to two I2Cs, three SPIs, two I2Ss, one SDIO, five USARTs, an USB and a CAN.

Parametrics

STM32F103 absolute maximum ratings: (1)VDD–VSS, External main supply voltage (including VDDA and VDD): -0.3 to 4.0V; (2)VIN, Input voltage on five volt tolerant pin: VSS -0.3 to VDD + 4.0V; (3)Input voltage on any other pin: VSS -0.3 to 4.0V; (4)|ΔVDDx|, Variations between different VDD power pins: 50mV; (5)|VSSX - VSS|, Variations between all the different ground pins: 50mV.

Features

STM32F103 features: (1)Core: ARM 32-bit Cortex-M3 CPU: 72 MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory; (2)access; Single-cycle multiplication and hardware division; (3)Memories: 256 to 512 Kbytes of Flash memory; up to 64 Kbytes of SRAM; Flexible static memory controller with 4 Chip Select. Supports Compact Flash, SRAM, PSRAM, NOR and NAND memories; LCD parallel interface, 8080/6800 modes; (4)2.0 to 3.6 V application supply and I/Os ; (5)POR, PDR, and programmable voltage detector (PVD); (6)4-to-16 MHz crystal.
