Product Summary
The STM8L151K6T6 is an 8-bit ultralow power MCU. The The STM8L151K6T6 is referred to as medium-density devices in the STM8L15xxx reference manual (RM0031) and in the STM8L Flash programming manual (PM0054).
Parametrics
STM8L151K6T6 absolute maximum ratings: (1)VDD- VSS, External supply voltage (including VDDA and VDDIO): -0.3 to 4.0V; (2)VIN, Input voltage on true open-drain pins (PC0 and PC1): VSS-0.3 VDD + 4.6V; Input voltage on FT pins (PA7 and PE0): VSS-0.3 VDD + 4.6V; Input voltage on any other pin: VSS-0.3 to 4.6V.
Features
STM8L151K6T6 features: (1)Operating conditions, Operating power supply range 1.8 V to; (2)3.6 V (down to 1.65 V at power down); Temperature range: -40℃ to 85 or 125℃; (3)Low power features, 5 low power modes: Wait , Low power run (5.4 μA), Low power wait (3 μA), Active-halt with RTC (1 μA), Halt (400 nA); Dynamic consumption: 192 μA/MHz; Ultralow leakage per I/0: 50 nA; Fast wakeup from Halt: 5 μs; (4)Advanced STM8 core, Harvard architecture and 3-stage pipeline; Max freq. 16 MHz, 16 CISC MIPS peak; Up to 40 external interrupt sources; (5)Reset and supply management, Low power, ultrasafe BOR reset with 5 selectable thresholds; Ultralow power POR/PDR; Programmable voltage detector (PVD); (6)Clock management, 1 to 16 MHz crystal oscillator, 32 kHz crystal oscillator; Internal 16 MHz factory-trimmed RC; Internal 38 kHz low consumption RC; Clock security system; (7)Low power RTC, BCD calendar with alarm interrupt; Auto-wakeup from Halt w/ periodic interrupt; (8)LCD: up to 4x28 segments w/ step-up converter.

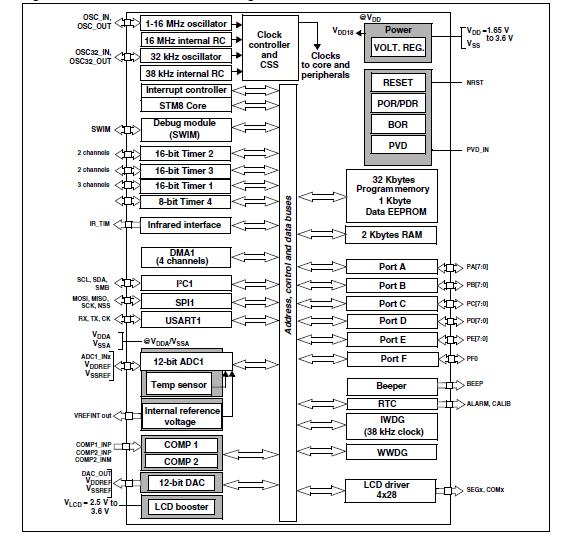

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STM8L151K6T6 |
STMicroelectronics |
8-bit Microcontrollers (MCU) 8-bit Ultralow MCU 32 KB Flash |
