TC74HC4066AFT

TC74HC4066AFT, CMOS Quad Bilateral Switch, TSOP, -0.5 to 13 V, ±50 mA, 500mW, Toshiba Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.50~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 300 :	2.00 / Piece
301 ~ 600 :	1.80 / Piece
601 ~ 1000 :	1.50 / Piece

PartNumber:: TC74HC4066AFT

Brand:: Toshiba Semiconductor - Toshiba | Pack: TSOP | D/C: 11+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Alice's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-15

From Other Seller

Part Number:TC74HC4066AFT
US $1.50 - 2.00
Quantity:

piece

Product Summary

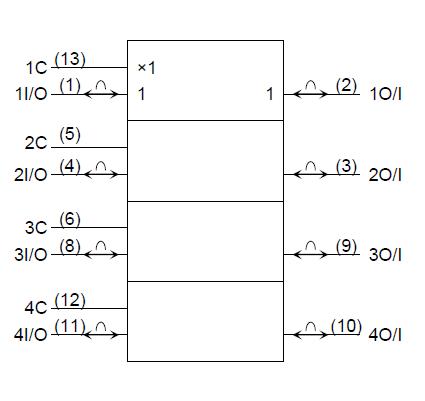

The TC74HC4066AFT is a high speed CMOS quad bilateral switch fabricated with silicon gate C2MOS technology. The TC74HC4066AFT consists of four independent high speed switches capable of controlling either digital or analog signals while maintaining the CMOS low power dissipation. Control input (C) is provided to control the switch. The switch turns ON while the C input is high, and the switch turns OFF while low.

Parametrics

TC74HC4066AFT absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 to 13 V; (2)Control input voltage, VIN: -0.5 to VCC + 0.5 V; (3)Switch I/O voltage, VI/O: -0.5 to VCC + 0.5 V; (4)Control input diode current, IIK: ±20 mA; (5)I/O diode current, IOK: ±20 mA; (6)Switch through Current, IOUT: ±25 mA; (7)DC VCC/ground current, ICC: ±50 mA; (8)Power dissipation, PD: 500 (DIP)/180 (SOP/TSSOP) mW; (9)Storage temperature, Tstg: -65 to 150℃.

Features

TC74HC4066AFT features: (1)High speed: tpd = 7 ns (typ.) at VCC = 5 V; (2)Low power dissipation: ICC = 1μA (max) at Ta = 25℃; (3)High noise immunity: VNIH = VNIL = 28% VCC (min); (4)Low on resistance: RON = 50Ω(typ.) at VCC = 9 V; (5)High degree of linearity: THD = 0.05% (typ.) at VCC = 5 V; (6)Pin and function compatible with 4066B.
