TPS658620

TPS658620, Advanced Power Management Unit, BGA, -0.3 V to 18 V, 2.5A, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 300 :	3.00 / Piece
301 ~ 600 :	2.80 / Piece
601 ~ 1000 :	2.50 / Piece

PartNumber:: TPS658620

Brand:: Texas Instruments - TI | Pack: BGA | D/C: 11+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Alice's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-10

From Other Seller

Part Number:TPS658620
US $2.50 - 3.00
Quantity:

piece

Product Summary

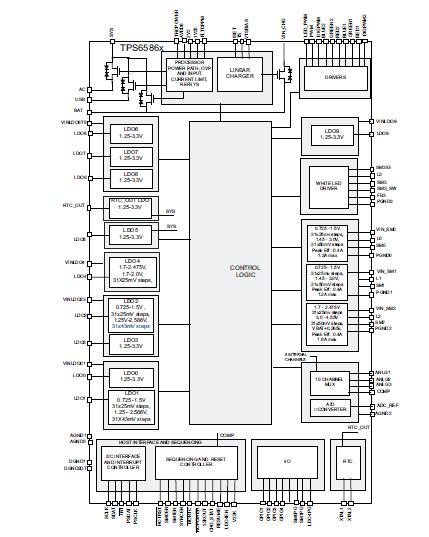

The TPS658620 is an Advanced Power Management Unit. The TPS658620 provides an easy to use, fully integrated solution for handheld devices, integrating charge management, multiple regulated power supplies, system management and display functions in a small 6x6 package. The I2C interface enables control of a wide range of subsystem parameters. Internal registers have a complete set of status information, enabling easy diagnostics and host-controlled handling of fault conditions. The applications of the TPS658620 include Smart Phones, Portable Navigation Devices, Portable Media Players.

Parametrics

TPS658620 absolute maximum ratings: (1)AC and USB with respect to AGND1: -0.3 V to 18 V; (2)ANLG1, ANLG2, ANLG3 with respect to AGND2: -0.3 V to 6.5 V; (3)V(SYS), V(VIN_CHG) with respect to AGND1: -0.3 V to 6.5 V; (4)VIN_LDO01, VIN_LDO23, VIN_LDO4, VIN_LDO678, VIN_LDO9 with respect to AGND1: -0.3 V to 6.5 V; (5)ADC_REF with respect to AGND2: -0.3 V to 3.6 V; (6)RTC_OUT with respect to V(SYS): -5.5 V to 3.6 V; (7)RTC_OUT with respect to AGND1: -0.3 V to 3.6 V; (8)Input Current, AC pin: Defined by ILIM; (9)Input Current, USB pin: Defined by ILIM; (10)Output continuous current, SYS, VIN_CHG pins: 2500 mA; (11)Output continuous current, BAT pin: -3000 mA; (12)Continuous Current at L0, PGND0, L1, PGND1: 1500 mA; (13)Continuous Current at L3, PGND3: 1000 mA; (14)Continuous Current at L2, PGND2: 2000 mA; (15)Operating free-air temperature, TA: -40℃ to 85℃; (16)Maximum junction temperature, TJ: 125℃; (17)Storage temperature, TSTG: -65℃ to 150℃.

Features

TPS658620 features: (1)Complete Charge Management Solution for a Single Cell Li-Ion/Li-Pol Cell With Dynamic Power Management and Thermal Foldback; (2)Maximum 1.0A charge current; (3)Programmable Adapter and USB Charge Operation; (4)3 Programmable Step-Down converters, Software Controlled Enable/Forced PWM Mode, Automatic Power Saving Mode, Maximum 1.2A Outputs; (5)11 Programmable General Purpose LDOs, With Output Voltages of 1.25V to 3.3V, 2 With Output Voltages of 0.725V to 1.5V or 1.25V to 2.586V (factory configurable), 1 “Always On” With Output Voltages of 1.25V to 3.3V, 1 With Output Voltage of 1.70V–2.475V.
