Product Summary
The TQL5000 is a low noise amplifier designed for 802.11a receive applications for the WLAN market. The TQL5000 exhibits industry-leading noise figure and power consumption while maintaining high intercept performance. It requires a single 3 V supply voltage and draws 8 mA. The LNA is manufactured using TriQuint’s GaAs pHEMT process and is packaged in an ultra-small, low-profile 1.3mm x 2mm x 0.4mm Lead Free SLIM-7 package. The applications of the TQL5000 include 802.11a WLAN, PCs and Mobile Devices, WLAN Access Points, WLAN Repeaters.
Parametrics
TQL5000 absolute maximum ratings: (1)Supply Voltage Range, Vddl: 0 to 6VDC; (2)Voltage, @ RF Ports, Vrf: -0.3to 0.3VDC; (3)Volgate, @ GND ports, Vgnd: -0.3 to 0.3V; (4)Operating Temperature Range, Ta: -40 to 85℃; (5)Channel Temperature, Tch: 150℃; (6)Storage Temperature Range, Tstg: -55 to 150℃; (7)Power Dissipation, Pdiss: 0.2W; (8)Maximum Input Power, PI: 0dBm.
Features
TQL5000 features: (1)4.9 to 5.9 GHz Frequency Coverage; (2)Low Noise Figure; (3)High Gain; (4)Low Current: 8mA Typical @ 3V; (5)50-ohm Input and Output Match; (6)GaAs pHEMT Technology; (7)Leadless 1.3 x 2.0 x 0.4 mm Lead Free SMT Package.

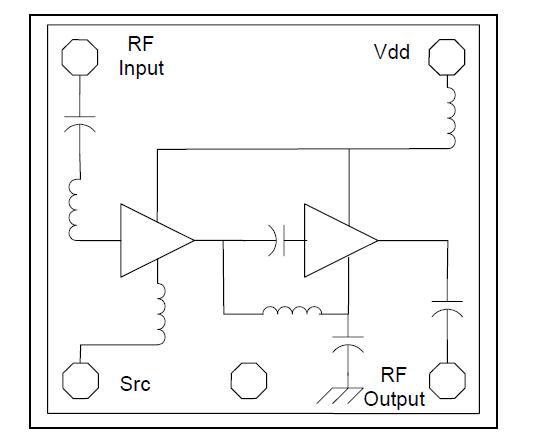

Diagrams
