Product Summary

The VHC08 is high-speed logic IC made by CMOS technology and designed for use in high-performance calculating systems with a wide supply voltage range. As for operation speed, VHC08 can be compared with equivalent bipolar ICs based on Schottky TTL and two tim es surpasses ICs of KK74HC series. TheVHC08 tolerates operation under conditions when voltage on input is exceeded up to 7V without affecting.

Parametrics

VHC08 absolute maximum ratings: (1) Supply voltage, V, VCC: -0.5 to 7.0V; (2) Input voltage, V, VIN: -0.5 t0 7.0V; (3) Output voltage, V, Vout: -0.5 to Vcc +0.5V; (4) Input diode current, m A, lik: -20mA; (5) Current of com mon output and supply output: ±50mA; (6) Output current, Iout: ±25mA; (7) Output diode current, Iok: ±20mA; (8) Dissipated power, Pd: 180mW.

Features

VHC08 features: (1) upply voltage range 2.0 to 5.5V; (2) Output current 8mA; (3) Low consumption current: 0.2 m kA (typical value) at Ta= 25 ° С; (4) Latchup current not less than 300 mA at Ta=85 ° С; (5) Tolerable value of static potential not less than 2000 V as per human body mode (HBM) and not less than 200 V as per machine m odel; (6) Ambient operation tem perature m i nus 40 to plus 85 ° С; (7) Balanced signal propagation delay; (8) Ensures voltage exceeding m ode on input; (9) Low noise level at the simultaneous switching of outputs in the same state: VOLP=0.8V (max) ; (10) For pins and functions, compatible with KK74HC08.

Diagrams

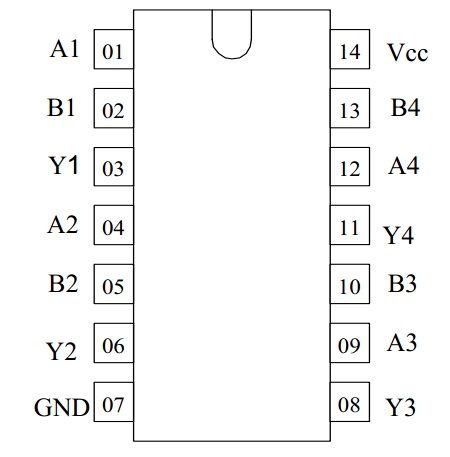

VHC08 Pinout
