Product Summary

The W25Q16BVSSIG is a Flash memory. The W25Q16BVSSIG provides a storage solution for systems with limited space, pins and power. The W25Q16BVSSIG offers flexibility and performance well beyond ordinary Serial Flash devices. The W25Q16BVSSIG is ideal for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP) and storing voice, text and data. The W25Q16BVSSIG operates on a single 2.7V to 3.6V power supply with current consumption as low as 4mA active and 1uA for power-down. The W25Q16BVSSIG is offered in spacesaving packages. The W25Q16BVSSIG array is organized into 8,192 programmable pages of 256-bytes each. Up to 256 bytes can be programmed at a time. Pages can be erased in groups of 16 (sector erase), groups of 128 (32KB block erase), groups of 256 (64KB block erase) or the entire chip (chip erase). The W25Q16BVSSIG has 512 erasable sectors and 32 erasable blocks respectively. The small 4KB sectors allow for greater flexibility in applications that require data and parameter storage.

Parametrics

W25Q16BVSSIG absolute maximum ratings: (1)Supply Voltage VCC: －0.6 to +4.0 V; (2)Voltage Applied to Any Pin VIO Relative to Ground: －0.6 to VCC+; (3)Transient Voltage on any Pin VIOT <20nS Transient Relative to Ground: －2.0V to VCC+2.0V; (4)Storage Temperature TSTG: －65 to +150℃; (5)Lead Temperature TLEAD: See Note℃; (6)Electrostatic Discharge Voltage VESD Human Body Model(3): －2000 to +2000 V.

Features

W25Q16BVSSIG features: (1)Family of SpiFlash Memories; (2)Standard, Dual or Quad SPI; (3)Highest Performance Serial Flash; (4)Efficient Continuous Read Mode; (5)Low Power, Wide Temperature Range; (6)Flexible Architecture with 4KB sectors; (7)Advanced Security Features; (8)Space Efficient Packaging.

Diagrams

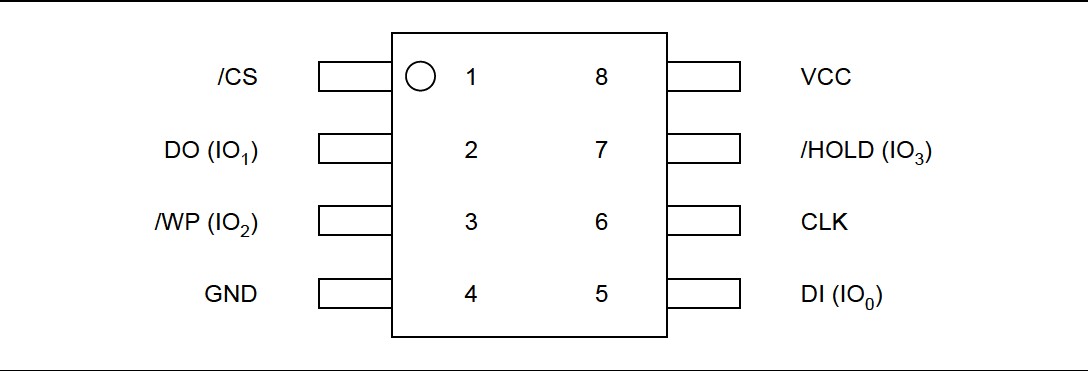

W25Q16BVSSIG block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
W25Q16BVSSIG
W25Q16BVSSIG

IC SPI FLASH 16MBIT 8SOIC
Data Sheet
0-1: $0.44
1-10: $0.40
10-25: $0.40
25-50: $0.39
50-100: $0.35
100-250: $0.35
250-500: $0.34
500-1000: $0.33
1000-2500: $0.32
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
W25Q128BVEIG
W25Q128BVEIG

IC SPI FLASH 128MBIT 8WSON
Data Sheet
Negotiable
W25Q128FVEIG
W25Q128FVEIG

IC FLASH SPI 128MBIT 8WSON
Data Sheet
0-1: $2.44
1-10: $2.21
10-25: $2.16
25-50: $2.15
50-100: $1.93
100-250: $1.92
250-500: $1.85
500-1000: $1.76
1000-2500: $1.74
W25Q128FVFIG
W25Q128FVFIG

IC FLASH SPI 128MBIT 16SOIC
Data Sheet
0-1: $2.38
1-10: $2.16
10-25: $2.11
25-50: $2.10
50-100: $1.88
100-250: $1.87
250-500: $1.81
500-1000: $1.72
1000-2500: $1.70
W25Q128FVSIG
W25Q128FVSIG

IC FLASH SPI 128MBIT 8SOIC
Data Sheet
0-1: $2.21
1-10: $2.00
10-25: $1.96
25-50: $1.95
50-100: $1.75
100-250: $1.74
250-500: $1.68
500-1000: $1.59
1000-2500: $1.58
W25Q16BVSFIG
W25Q16BVSFIG

IC SPI FLASH 16MBIT 16SOIC
Data Sheet
0-1: $0.52
1-10: $0.47
10-25: $0.47
25-50: $0.46
50-100: $0.42
100-250: $0.41
250-500: $0.41
500-1000: $0.39
1000-2500: $0.38
W25Q16BVSSIG
W25Q16BVSSIG

IC SPI FLASH 16MBIT 8SOIC
Data Sheet
0-1: $0.44
1-10: $0.40
10-25: $0.40
25-50: $0.39
50-100: $0.35
100-250: $0.35
250-500: $0.34
500-1000: $0.33
1000-2500: $0.32
