Product Summary

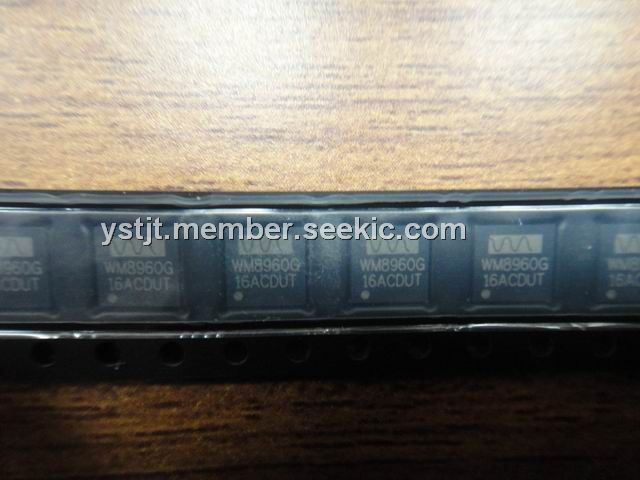

The WM8960G is a low power, high quality stereo codec designed for protable digital audio applications. The WM8960G operates at analogue supply voltages down to 2.7V, although the digital supplies can operate at voltages down to 1.71V to save power. The WM8960G is supplied in a very small and thin 5*5mm QFN package, ideal for use in hand-held and portable system. Applications of the WM8960G include: Games consoles, Portable mdeia/DVD players, Mobile multimedia.
Parametrics
WM8960G absolute maximum ratings: (1) Supply voltages ( excluding SPKVDD1 and SPKVDD2) : -0.3V to 4.5V; (2) SPKVDD1, SPKVDD2: -0.3V to +7V; (3) Voltage range digital inputs: DGND -0.3V, DBVDD +0.3V; (4) Voltage range analogue inputs: AGND -0.3V, AVDD: +0.3V; (5) Opertating temperature range, TA: -40°C to +85°C; (6) Storage temperature after soldeing: -65°C to +150°C.
Features
WM8960G features: (1) Pop and click supperssion; (2) 3D Enchancement; (3) Stereo Class D Speaker Driver; (4) 40mW output power into 16Ω at 3.3V; (5) Capless mode support; (6) Low Supply Voltages; (7) On-chip PLL provides flexiable clocking scheme; (8) 5×5× QFN package.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 WM8960GEFL/RV |
Wolfson Microelectronics |
Audio CODECs STEREO CODEC 32-pin |
Data Sheet |
|
|
||||||||||||
|
WM8960GEFL/V |
Wolfson Microelectronics |
Audio CODECs Stereo CODEC + Class D Spkr and HP |
Data Sheet |
|
|
||||||||||||
