Product Summary
The XC61CN2702MR is a highly precise, low power consumption voltage detector, manufactured using CMOS and laser trimming technologies. Detect voltage is extremely accurate with minimal temperature drift. Both CMOS and N-channel open drain output configurations are available. The applications of the XC61CN2702MR are Microprocessor reset circuitry, Memory battery back-up circuits, Power-on reset circuits, Power failure detection, System battery life and charge voltage monitors.
Parametrics
XC61CN2702MR absolute maximum ratings: (1)Input Voltage, VIN: 9.0V; (2)Output Current, IOUT: 50 mA; (3)Output Voltage, VOUT: VSS -0.3 ~ 12.0 V; (4)Power Dissipation, Pd: 300 mW; (5)Operating Temperature Range Topr -40～+85℃; (6)Storage Temperature Range Tstg -40～+125℃.
Features
XC61CN2702MR features: (1)Highly Accurate: ± 2%; (2)Low Power Consumption: 0.7uA (TYP.) [VIN=1.5V]; (3)Detect Voltage Range: 0.8V ~ 6.0V in 100mV increments; (4)Operating Voltage Range: 0.7V ~ 6.0V (Low Voltage); 0.7V～10.0V (Standard Voltage); (5)Detect Voltage Temperature Characteristics: ±100ppm/℃ (TYP.) @Ta=25℃; (6)Output Configuration: N-channel open drain or CMOS; (7)CMOS; (8)Ultra Small Packages.

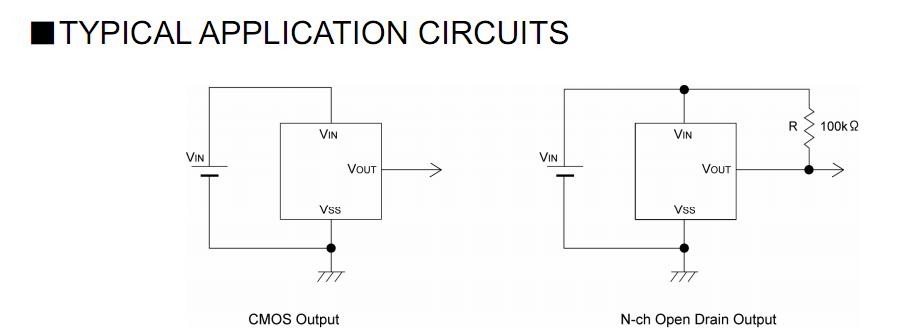

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 XC61CN2702MR-G |
|
IC SUPERVISOR 2.7V SOT23-3 |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
 |
XC61 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
XC6108C20AMR-G |
|
IC SUPERVISOR 2V SOT25-5 |
Data Sheet |
|
|
||||||
|
XC6108C22AMR-G |
|
IC SUPERVISOR 2.2V SOT25-5 |
Data Sheet |
|
|
||||||
|
XC6120C162NR-G |
|
IC SUPERVISOR 1.6V SSOT24-4 |
Data Sheet |
|
|
||||||
|
XC6120C172NR-G |
|
IC SUPERVISOR 1.7V SSOT24-4 |
Data Sheet |
|
|
||||||
|
XC6109 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
