Product Summary
The 74HC40520 high-speed Si-gate CMOS device and is pin compatible with the HEF4052B. The 74HC40520 is specified in compliance with JEDEC standard no. 7A. dual 4-channel analog multiplexer or demultiplexer with common select logic. Applications of the 74HC40520 include: Analog multiplexing and demultiplexing, Digital multiplexing and demultiplexing and Signal gating.
Parametrics
74HC40520 absolute maximum ratings: (1) supply voltage Vcc: -0.5V, +11.0V; (2) input diode current IIK: ±20mA (VI＜-0.5V or Vs＞Vcc +0.5V) ; (3) switch diode current : ±20mA (Vs＜-0.5V or Vs＞Vcc +0.5V) ; (4) VEE current: ±20mA; (5) VCC or GND current: ±50mA: (6) storage temperature Tstg: -65°C to +150°C; (7) power dissipation Ptot: 500mW; (8) power dissipation per switch Ps: 100mW.
Features
74HC40520 features: (1) Wide analog input voltage range from -5V to +5V; (2) Logic level translation: to enable 5V logic to communicate with ±5V analog signals; (3) Complies with JEDEC standard no. 7A; (4) CHBM EIA/JESD22-A114-B exceeds 2000V; (5) CMM EIA/JESD22-A115-A exceeds 200V; (6) Specifiedfrom 40 °C to +85°C and 40°C to +125°C.

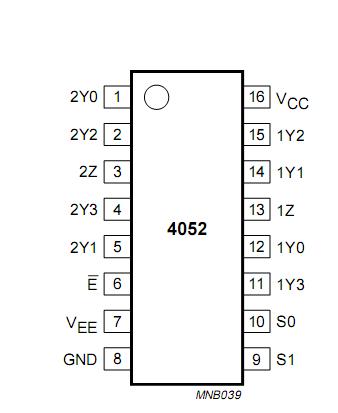

Diagrams
