Product Summary

The 74LVX4245MTCX is a dual-supply, 8-bit translating transceiver that is designed to interface between a 5V bus and a 3V bus in a mixed 3V/5V supply environment. The Transmit/Receive (T/R) input determines the direction of data flow. Transmit (active-HIGH) enables data from A ports to B ports; Receive (active-LOW) enables data from B ports to A ports. The Output Enable input, when HIGH, disables both A and B ports by placing them in a high Z condition. The A port interfaces with the 5V bus; the B port interfaces with the 3V bus. The 74LVX4245MTCX is suitable for mixed voltage applications such as laptop computers using 3.3V CPU and 5V LCD displays.

Parametrics

74LVX4245MTCX absolute maximum ratings: (1)Supply Voltage (VCCA, VCCB): -0.5V to +7.0V; (2)DC Input Voltage (VI) @ OE, T/R: -0.5V to VCCA + 0.5V; (3)DC Input/Output Voltage (VI/O) @ A(n): -0.5V to VCCA + 0.5V; (4)DC Input/Output Voltage (VI/O) @ B(n): -0.5V to VCCB+0.5V; (5)DC Input Diode Current (IIN) @ OE, T/R: ±20 mA; (6)DC Output Diode Current (IOK):±50 mA; (7)DC Output Source or Sink Current (IO): ±50 mA; (8)DC VCC or Ground Current per Output Pin (ICC or IGND): ±50 mA; (9)and Max Current @ ICCA: ±200 mA; (10)@ ICCB: ±100 mA; (11)Storage Temperature Range (TSTG): -65℃ to +150℃; (12)DC Latch-Up Source or Sink Current: 300 mA.

Features

74LVX4245MTCX features: (1)Bidirectional interface between 5V and 3V buses; (2)Control inputs compatible with TTL level; (3)5V data flow at A port and 3V data flow at B port; (4)Outputs source/sink 24 mA at 5V bus; 12 mA at 3V bus; (5)Guaranteed simultaneous switching noise level and dynamic threshold performance; (6)Available in SOIC, QSOP and TSSOP packages; (7)Implements patented Quiet Series EMI reduction circuitry; (8)Functionally compatible with the 74 series 245.

Diagrams

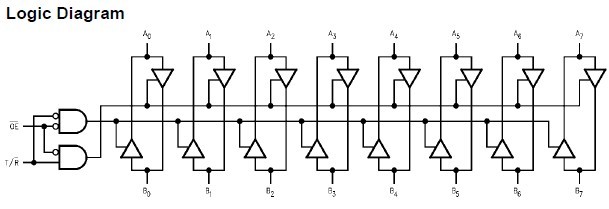

74LVX4245MTCX block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
74LVX4245MTCX
74LVX4245MTCX

Fairchild Semiconductor

Bus Transceivers 8-Bit Dl Supp Trans

Data Sheet

0-1: $0.56
1-25: $0.49
25-100: $0.38
100-250: $0.33
