Product Summary

The 7M5008 is a small (7x7mm), GSM/EDGE PAM for handset applications. This module has been optimized for excellent EDGE efficiency, ACPR and EVM in an open loop polar modulation environment at EDGE class E2+ operation while maintaining high GSM/GPRS efficiency. The 7M5008 was optimized for operation with the Qualcomm RTR6275 regarding input power range and Rx band performance. The applications of the 7M5008 include GSM/EDGE Handsets, GSM/EDGE Wireless Cards and Data Links.

Features

7M5008 features: (1)GSM/EDGE Multi-Mode Capability; (2)Optimized for Operation with Qualcomm’s Multi-mode MSM6280/RTR6275 chip sets; (3)87dBm typical Rx Noise; (4)38dB Typical ACPR (200KHz); (5)66dB Typical ACPR (400 KHz); (6)76dB Typical ACPR (600 KHz); (7)1% Typical EVM rms; (8)> 50dB Typical Dynamic Range; (9)GPRS Class 12; (10)Internally Matched Input and Output; (11)RoHS, MSL260C pending.

Diagrams

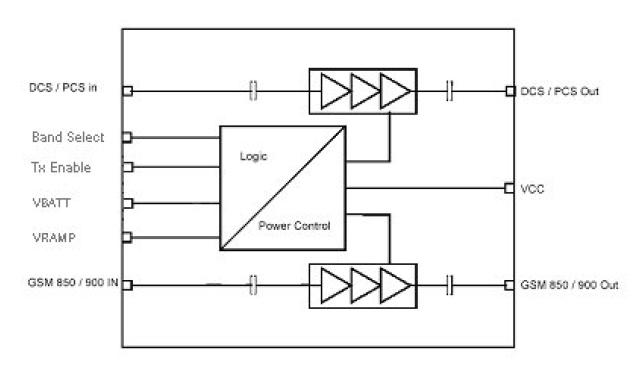

7M5008 block diagram
