Product Summary
The 88E6155-LKJ1 is a low power Gigabit Ethernet (GbE) switch which provides industry leading functionality and price-performance ratio for the cost-sensitive Small Office/Home Office (SOHO) and enterprise desktop switching market. The Link Street 88E6155-LKJ1 (5-port) is a GbE Quality of Service (QoS) switch integrating a high-performance switching fabric with five (88E6151) or eight (88E6181) SERDES ports. Each switch enables one port to be selected as a SERDES or as a fiber port that can directly drive a fiber module.
Features
88E6155-LKJ1 features: (1)Single-chip integration of a 5-port (88E6151) or 8-port (88E6181) GbE QoS switch; (2)Five/eight integrated triple-speed 10/100/1000 SERDES ports; (3)One port is selectable as SERDES or fiber; (4)Port-based VLANs supported in any combination; (5)High-speed switch fabric, High-performance look-up engine with support for up to 4,096 MAC address entries with automatic learning and aging; Port-based VLANs supported in any combination; (6)QoS determined by destination MAC address, port ID, IEEE 802.1p; (7)and multimedia traffic tags, IPv4 Type of Service (ToS), and Differentiated Services (DiffServ); (8)Link aggregation for any number of ports (port trunking); (9)Port mirroring.

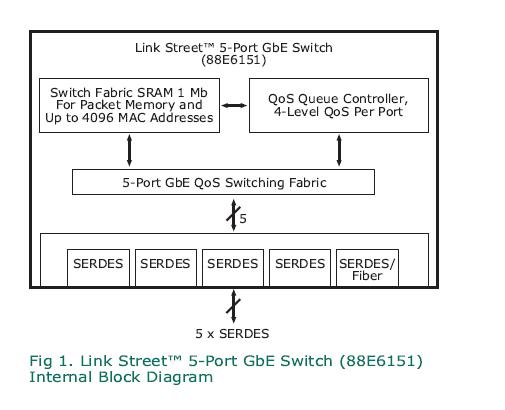

Diagrams
