Product Summary
The ADA4860-1YRJZ is a low cost, high speed, current feedback op amp that provides excellent overall performance. The 800 MHz, 3 dB bandwidth, and 790 V/s slew rate make the ADA4860-1YRJZ well suited for many high speed applications. The ADA4860-1YRJZ is designed to operate on supply voltages as low as +5 V and up to ±5 V using only 6 mA of supply current.
Parametrics
ADA4860-1YRJZ absolute maximum ratings: (1) Supply Voltage: 12.6V; (2) Common-Mode Input Voltage : -VS +1V to Vs -1V; (3) Storage Temperature Range : -65°C to +125°C; (4) Operating Temperature Range : -40°C to +105°C; (5) Differential Input Voltage: ±Vs; (6) Lead Temperature: JEDEC J-STD-20 ; (7) Junction Temperature: 150°C.
Features
ADA4860-1YRJZ features: (1) 800 MHz, 3 dB bandwidth; (2) 790 V/μs slew rate; (3) 8ns settling time to 0.5%; (4) Wide supply range: 5V to 12V; (5) Low power: 6mA; (6) 0.1dB flatness: 125MHz; (7) Differential gain: 0.02%; (8) Low voltage offset: 3.5 mV (typ); (9) High output current: 25mA Power down.

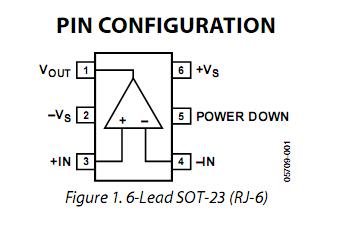

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADA4860-1YRJZ-R2 |
Analog Devices Inc |
IC OPAMP CURR FEEDBK LP SOT23-6 |
Data Sheet |
|
|
||||||||||||||||||
 |
ADA4860-1YRJZ-RL |
|
IC OPAMP CF LP 85MA SOT23-6 |
Data Sheet |
|
|
||||||||||||||||||
|
ADA4860-1YRJZ-RL7 |
|
IC OPAMP CF LP 85MA SOT23-6 |
Data Sheet |
|
|
||||||||||||||||||
