Product Summary
The AM29LV160DB-120E is a 16 Mbit, 3.0 Volt-only Flash memory organized as 2,097,152 bytes or 1,048,576 words. The device is offered in 48-ball FBGA, 44-pin SO, and 48-pin TSOP packages. The word-wide data (x16) appears on DQ15–DQ0; the byte-wide (x8) data appears on DQ7–DQ0. This device is designed to be programmed in-system with the standard system 3.0volt VCC supply. A 12.0 V VPP or 5.0 VCC are not required for write or erase operations. The AM29LV160DB-120E can also be programmed in standard EPROM programmers.
Parametrics
AM29LV160DB-120E absolute maximum ratings: (1)Storage Temperature, Plastic Packages: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -55℃ to +125℃; (3)Voltage with Respect to Ground, VCC (Note 1): -2.0 V to +7.0 V; (4)A9, OE#, and RESET# (Note 2): -2.0 V to +12.5 V; (5)All other pins (Note 1): -0.5 V to +7.0 V; (6)Output Short Circuit Current: 200 mA.
Features
AM29LV160DB-120E features: (1)Single power supply operation, 5.0 Volt-only operation for read, erase, and program operations; Minimizes system level requirements; (2)Manufactured on 0.32 μm process technology, Compatible with 0.5 μm Am29F800 device; (3)High performance, Access times as fast as 55 ns; (4)Low power consumption (typical values at 5 MHz), 1 μA standby mode current; 20 mA read current (byte mode); 28 mA read current (word mode); 30 mA program/erase current.

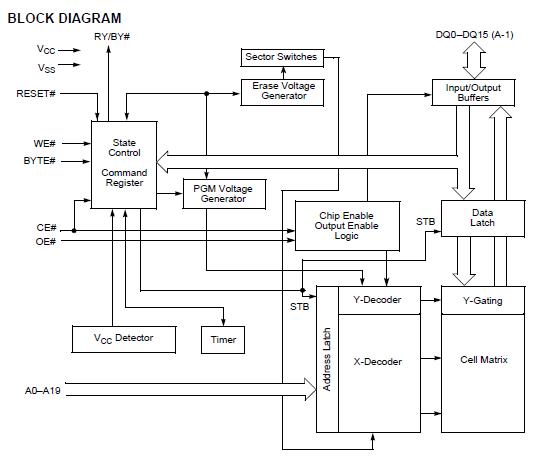

Diagrams
