Product Summary

The AME8804AEEYZ positive, linear regulators feature low quiescent current (30μA typ.) with low dropout oltage, making them ideal for battery applications. The AME8804AEEYZ has both Thermal Shutdown and Current Fold-back to prevent device failure under he Worst of operating conditions. Applications of the AME8804AEEYZ include: Instrumentation, Portable Electronics, Wireless Devices, Cordless Phones, PC Peripherals, Battery Powered Widgets and Electronic Scales.

Parametrics

AME8804AEEYZ absolute maximum ratings: (1) Input Voltage: 8V; (2) Output Current: PD/( VIN-VO) ; (3) Input, Output Voltage: GND -0.3V to VIN +0.3V.

Features

AME8804AEEYZ features: (1) Very Low Dropout Voltage; (2) Guaranteed 300mA Output; (3) Accurate to within 1.5%; (4) 30μA Quiescent Current; (5) Over-Temperature Shutdown; (6) Current Limiting; (7) Short Circuit Current Fold-back; (8) Power-Saving Shutdown Mode; (9) Space-Saving SOT-26 and SOT-25; (10) Low Temperature Coefficient.

Diagrams

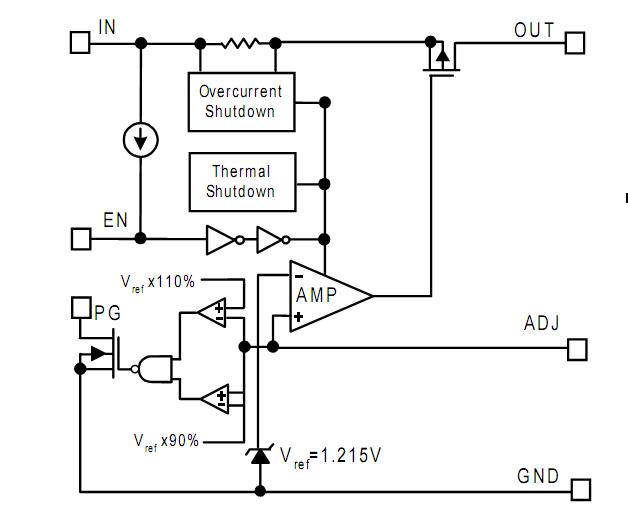

AME8804AEEYZ Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

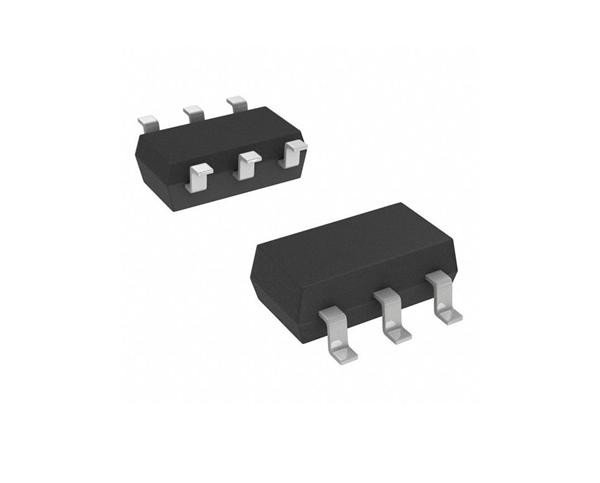

AME8804AEEYZ
AME8804AEEYZ
AME
Low Dropout (LDO) Regulators Adj. 300mA CMOS
Data Sheet
0-1: $0.41
1-25: $0.33
25-50: $0.29
50-100: $0.14
