Product Summary

The AO4807 is a Dual P-Channel Enhancement Mode Field Effect Transistor uses advanced trench technology to provide excellent RDS(ON), and ultra-low low gate charge. This device is suitable for use as a load switch or in PWM applications. Standard Product AO4807 is Pb-free (meets ROHS & Sony 259 specifications). The AO4807 is electrically identical.

Parametrics

AO4807 absolute maximum ratings: (1)Drain-Source Voltage, VDS: -30 V; (2)Gate-Source Voltage, VGS: ±20 V; (3)Continuous Drain Current, TA=25℃, ID: -6 A; TA=70℃, ID: -5A; (4)Pulsed Drain Current, IDM: -30A; (5)Power Dissipation, TA=25℃, PD: 2W; TA=70℃, PD: 1.44W; (6)Junction and Storage Temperature Range, TJ, TSTG: -55 to 150℃.

Features

AO4807 features: (1)VDS (V) = -30V; (2)ID = -6 A (VGS = -10V); (3)RDS(ON) < 35mΩ (VGS = -10V); (4)RDS(ON) < 58mΩ (VGS = -4.5V).

Diagrams

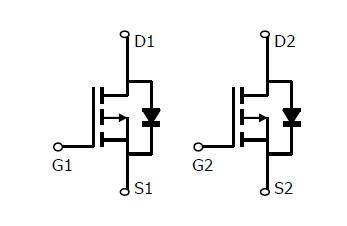

AO4807 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AO4807
AO4807

MOSFET DUAL P-CH -30V -6A 8-SOIC
Data Sheet
0-1: $0.49
1-25: $0.38
25-100: $0.34
100-250: $0.29
250-500: $0.25
500-1000: $0.20
