Product Summary

The AO4842 is a Dual N-Channel Enhancement Mode Field Effect Transistor uses advanced trench technology to provide excellent RDS(ON) and low gate charge. The two MOSFETs make a compact and efficient switch and synchronous rectifier combination for use in buck converters. The AO4842 is Pb-free (meets ROHS & Sony 259 specifications). The AO4842 is electrically identical.

Parametrics

AO4842 absolute maximum ratings: (1)Drain-Source Voltage, VDS: 30 V; (2)Gate-Source Voltage, VGS: ±20 V; (3)Continuous Drain Current, TA=25℃, ID: 7.5 A; TA=70℃, ID: 6.4A; (4)Pulsed Drain Current, IDM: 30A; (5)Power Dissipation, TA=25℃, PD: 2W; TA=70℃, PD: 1.44W; (6)Junction and Storage Temperature Range, TJ, TSTG: -55 to 150℃.

Features

AO4842 features: (1)VDS (V) = 30V; (2)ID = 7.5A (VGS = 10V); (3)RDS(ON) < 22mΩ (VGS = 10V); (4)RDS(ON) < 35mΩ (VGS = 4.5V).

Diagrams

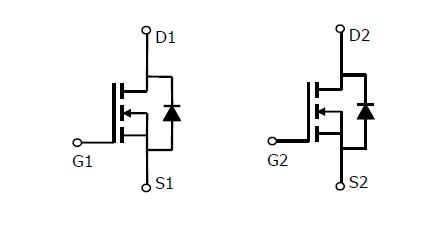

AO4842 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AO4842
AO4842

MOSFET DUAL N-CH 30V 7.5A 8-SOIC
Data Sheet
0-1: $0.43
1-25: $0.30
25-100: $0.26
100-250: $0.22
250-500: $0.19
500-1000: $0.15
