Product Summary

The AWT6273R is a HELP3TM Cellular/WCDMA 3.4 V/29 dBm Linear Power Amplifier Module. This PA incorporates ANADIGICS’ HELP3TM technology to provide low power consumption without the need for an external voltage regulator. The AWT6273R is manufactured on an advanced InGaP HBT MMIC technology offering state-of-the-art reliability, temperature stability, and ruggedness. The applications of the AWT6273R include Dual Band WCDMA Wireless Handsets, Dual Mode 3GPP Wireless Handsets.

Parametrics

AWT6273R absolute maximum ratings: (1)Supply Voltage (VCC): 0 to +5 V; (2)Battery Voltage (VBATT): 0 to +6 V; (3)Control Voltages (VMODE1, VMODE2, VENABLE): 0 to +3.5 V; (4)RF Input Power (PIN): +10 dBm; (5)Storage Temperature (TSTG): -40 to +150℃.

Features

AWT6273R features: (1)InGaP HBT Technology; (2)High Efficiency: 43 % @ POUT = +29 dBm; 20 % @ POUT = +16 dBm; 8 % @ POUT = +8 dBm; (3)Low Quiescent Current: 7 mA; (4)Low Leakage Current in Shutdown Mode: <1μA; (5)Internal Voltage Regulator Eliminates the Need for External Reference Voltage (No VREF Required); (6)Optimized for a 50Ω System; (7)Low Profile Miniature Surface Mount Package; (8)RoHS Compliant Package, 250℃ MSL-3; (9)HSDPA Compliant (no backoff).

Diagrams

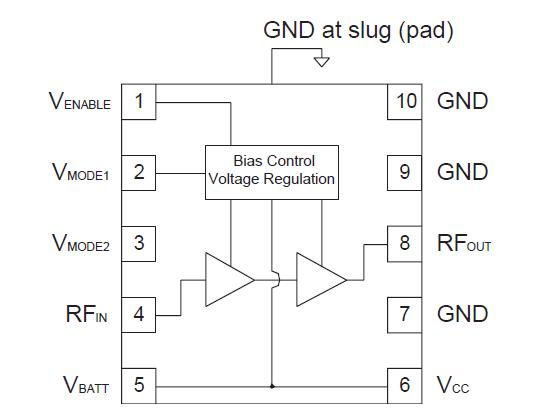

AWT6273R block diagram
