Product Summary

The BCM5324MKPBG is a single-chip L2 managed switch.

Features

BCM5324MKPBG features: (1)Seventh-generation ROBO L2+ 24FE + 2GE switch with two GMII/RGMII/TBI interfaces; (2)Twenty-four fully integrated 10/100 PHYs with support of Advanced Cable Diagnostics in the Broadcom PHY technology; (3)QoS packet classification supports four priority queues; (4)Port-based VLAN and 802.1Q VLAN with 4k entries; (5)Supports traffic aggregation via double tagging; (6)Spanning Tree (IEEE 802.1D/1s/1w); (7)MAC-based Trunking with automatic link failover; (8)Port mirroring; (9)IGMP snooping Layer2/3; (10)Over 70 MIB counters for per port management statistics; (11)Up to 24 Static Secure MAC addresses per port; (12)Programmable Broadcast, Multicast, and Unknown Unicast storm control; (13)Per port Bandwidth/Rate Control; (14)8K MAC addresses with automatic learning and aging; (15)Protected Port; (16)Multicast Address table for 256 entries; (17)25th FE port via MII or Reversed MII mode for management; (18)MDC/MDIO and SPI interfaces; (19)Internal oscillator simplifies design and reduces cost; (20)JTAG; (21)Embedded 2.5V and 1.2V regulator, typical power consumption: 3.5W; (22)400-pin PBGA package.

Diagrams

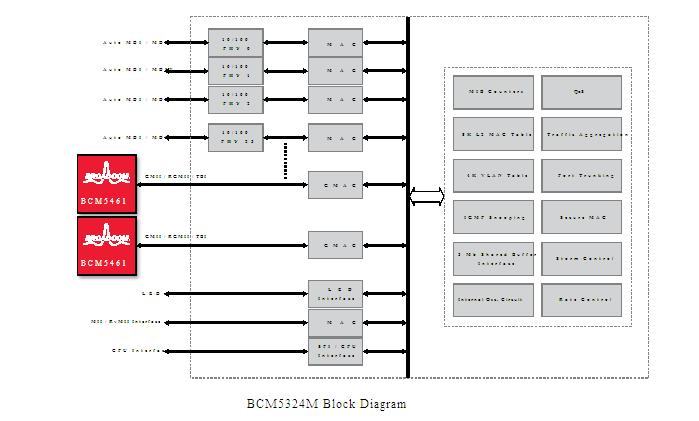

BCM5324MKPBG block diagram
