Product Summary
The BCM8727BIFBG is a quad XAUI/CX4/LX4 1.0–3.2 GBPS retimer/switch. The applications of the BCM8727BIFBG include 1-GbE and 10-GbE LAN, MAN, WAN switches and routers, 1×2× or 10-Gigabit Fibre Channel, InfiniBand, SONET network cards, 40-Gbps backplanes and backplane extenders, Advanced test equipment (ATE).
Features
BCM8727BIFBG features: (1)Eight independent retimer channels supporting multiple data rates from 1.0 to 3.2 Gbps, including 1.06 Gbps, 1.25 Gbps, 2.12 Gbps, 2.488 Gbps, 2.5 Gbps, 2.667 Gbps, 3.125 Gbps, and 3.1875 Gbps; (2)Multiconfigurable to support various operating modes; (3)Eight independent 1.0- to 3.2-Gbps retiming channels (single clock domain); (4)Dual XAUI?CX4/LX4 to XAUI/CX4/LX4 retiming channels with redundancy compatible to IEEE802.3 ae; (5)Dual XAUI/CX4/LX4 to XAUI/CX4/LX4 retiming switch; (6)Low power dissipation; (7)Less than 400mW per retiming/switch channel including I/O; (8)High-performance programmable receive equalization and transmit pre-emphasis; (9)Transmit pre-emphasis for interoperability with CML SerDes; (10)Receive equalization for copper interconnects; (11)Enhanced test capability; (12)Full loopback, BIST, 10G BERT, and random Ethernet packet generation; (13)Compact 23-mm x 23-mm package with no external components required; (14)No requirement for heat sink or airflow.

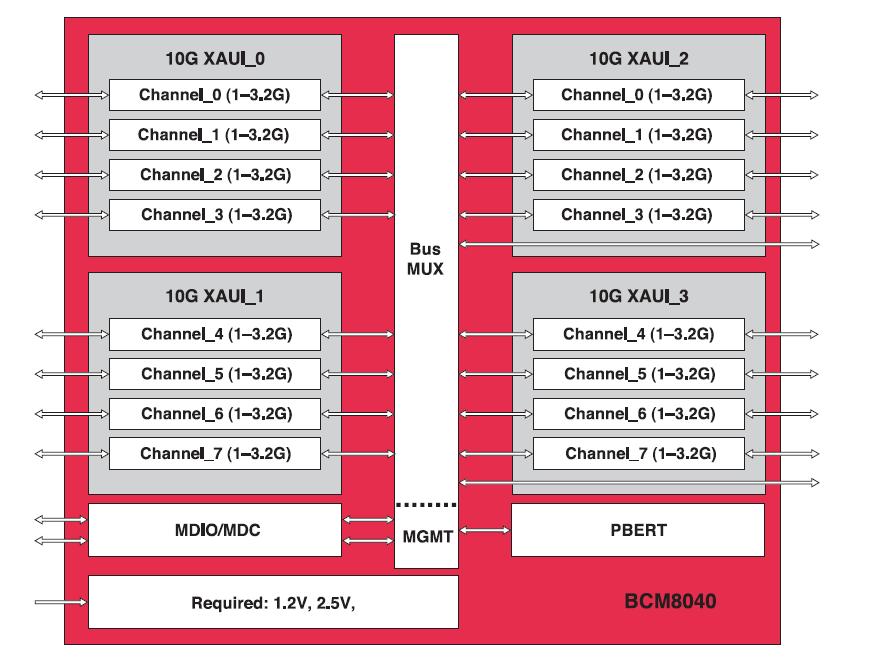

Diagrams
