Product Summary

The EST248 is a hall effect sensor based on mixed-signal CMOS technology, this type of IC used chopping stability of advanced technology, and provide accurate and stable magnetic switch point.

Parametrics

EST248 absolute maximum ratings: (1)Supply Voltage (Operating), VDD: 5V; (2)Supply Current (Fault), IDD: 5mA; (3)Output Voltage, VOUT: 5V; (4)Output Current (Fault), IOUT: 5mA; (5)Operating Temperature Range, TA: -40 to 85℃; (6)Storage Temperature Range, TS: -55 to 150℃.

Features

EST248 features: (1)The stability of the chopper amplifier; (2)Micro power battery applications; (3)The polarity of the output switch; (4)Working voltage as low as 2.5 V; (5)High sensitivity directly replace application of reed switch; (6)Package Type: Package Type; (7)With A3248, MLX90248, TLE4913 pin compatible.

Diagrams

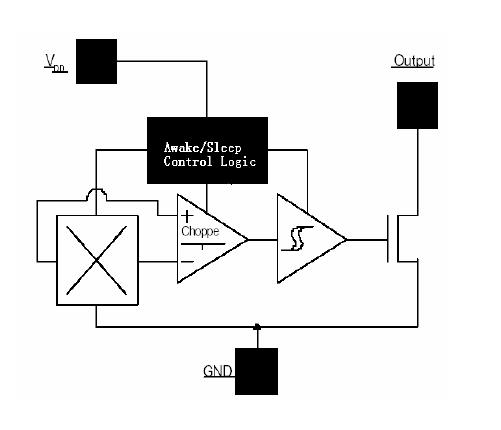

EST248 block diagram
