Product Summary

The FTLF8524P2BNV is a Small Form Factor Pluggable (SFP) transceiver which compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA)1. The FTLF8524P2BNV is compatible with Fibre Channel FC-PI-2 Rev. 7.02. Rate Selectable versions are also compatible with Gigabit Ethernet as specified in IEEE Std 802.33. The device is RoHS compliant and lead-free per Directive 2002/95/EC4 and Finisar Application Note AN-2038. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA. The applications of the FTLF8524P2BNV include Tri-Rate 1.063/2.125/4.25 Gb/s Fibre Channel, 1.25 Gb/s 1000Base-SX Ethernet (Rate selectable version).

Parametrics

FTLF8524P2BNV absolute maximum ratings: (1)Maximum Supply Voltage, Vcc: -0.5 to 4.0 V; (2)Storage Temperature, TS: -40 to 85℃; (3)Case Operating Temperature, TA: -20 to 85℃; (4)Relative Humidity, RH: 0 to 85 %.

Features

FTLF8524P2BNV features: (1)Up to 4.25 Gb/s bi-directional data links; (2)Hot-pluggable SFP footprint; (3)Built-in digital diagnostic functions; (4)850nm Oxide VCSEL laser transmitter; (5)Duplex LC connector; (6)RoHS Compliant and Lead Free; (7)Up to 500m on 50/125μm MMF, 300m on 62.5/125μm MMF; (8)Metal enclosure, for lower EMI; (9)Single 3.3V power supply; (10)Extended operating temperature range: -20℃ to 85℃.

Diagrams

FTLF8524P2BNV block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

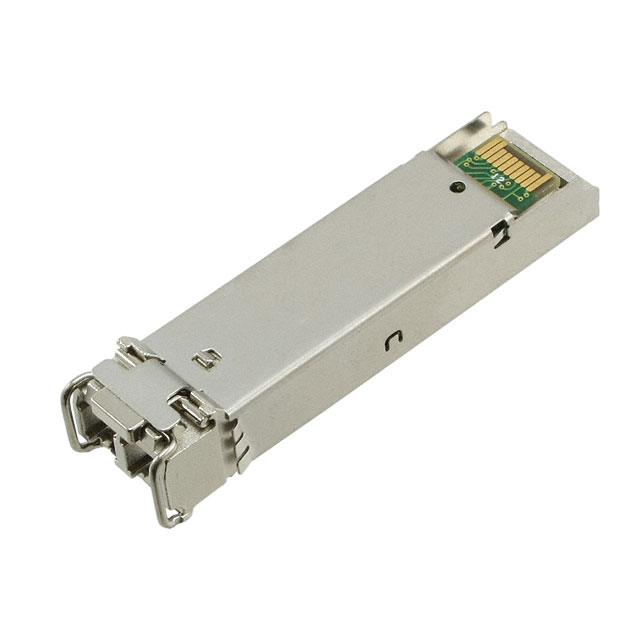

FTLF8524P2BNV
FTLF8524P2BNV

TXRX OPT SFP 4 GB/S 850NM
Data Sheet
0-1: $28.75
1-25: $24.86
25-100: $23.31
100-250: $21.76
250-500: $20.67
500-1000: $19.89
1000-2500: $19.27
2500-5000: $18.65
