Product Summary

The ISL5216KI is a 4-channel digital receiver integrated circuit offering exceptional dynamic range and flexibility. Each of the four channels consists of a front-end NCO, digital mixer, and CIC-filter block and a back-end FIR, AGC and Cartesian to polar coordinate-conversion block. The parameters for the four channels are independently programmable. Four 17-bit parallel data input busses (A(15:-1), B(15:-1), C(15:-1) and D(15:-1)) and four pairs of serial data outputs (SDxA, SDxB, SDxC, and SDxD; x = 1 or 2) are provided. Each input can be connected to any or all of the internal signal processing channels, Channels 0, 1, 2 and 3. The output of each channel can be routed to any of the serial outputs. Outputs from more than one channel can be multiplexed through a common output if the channels are synchronized. It is ideal for: (1)narrow-band tdma through is-95 cdma digital software radio and basestation receivers; (2)wide-band applications: w-cdma and umts digital software radio and basestation receivers.



Parametrics

ISL5216KI absolute maximum ratings: (1)supply voltage: 4.6v; (2)core supply voltage: 3.5v; (3)input, output or i/o voltage: gnd -0.5v to vcc +0.5v; (4)esd classification: class i.

Features

ISL5216KI features: (1)up to 95msps input; (2)four independently programmable downconverter channels in a single package; (3)four parallel 17-bit inputs providing 16-bit fixed or one of several 17-bit floating point formats; (4)32-bit programmable carrier nco with > 115db sfdr; (5)110db fir out of band attenuation; (6)decimation from 4 to >65536; (7)24-bit internal data path; (8)digital agc with up to 96db of gain range; (9)cascadable filtering for additional bandwidth; (10)four independent serial outputs; (11)2.5v core, 3.3v i/o operation.

Diagrams

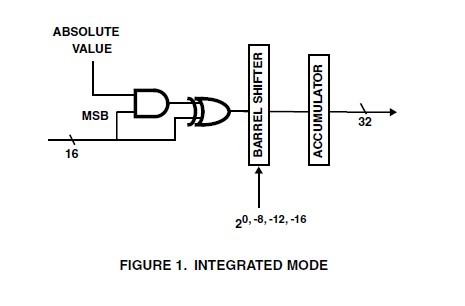

ISL5216KI pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ISL5216KI
ISL5216KI

Intersil

IC DOWNCONVERTER 4CHAN 196-BGA

Data Sheet

Negotiable
ISL5216KI-1
ISL5216KI-1

Intersil

IC DOWNCONVERTER 4CHAN 196-BGA

Data Sheet

Negotiable
ISL5216KI-1Z
ISL5216KI-1Z

Intersil

Up-Down Converters W/ANL QD DIG DWNCNVRTR 1 OM PITCH

Data Sheet

0-101: $22.87
ISL5216KIZ
ISL5216KIZ

Intersil

Up-Down Converters W/ANNEAL QD DIGTL DWNCNVRTR IND TEMP

Data Sheet

0-152: $22.81
