Product Summary
The JSH-01LWAA1 is a lead-free and RoHS-compliant small form factor pluggable (SFP+) transceiver from JDSU improves the performance for 10 Gigabit Ethernet (10 G) applications, and is ideal for high-speed, local area network applications. This transceiver features a highly reliable, 1310 nm, distributed feedback (DFB) laser coupled to an LC optical connector. The transceiver is fully compliant to 10GBASE-LR, 10GBASELW and 10 G Fibre Channel specifications, with internal AC coupling on both transmit and receive data signals. The applications of the JSH-01LWAA1 include Inter-data-center connectivity, Enterprise backbones, Metro access, Carrier point of presence; High-speed local area networks, Switches and routers, Network interface cards; High-speed cluster and grid computing aggregation; Custom high-bandwidth data pipes; Disaster recovery and backup connectivity.
Parametrics
JSH-01LWAA1 absolute maximum ratings: (1)Storage temperature, Tst: -40 to +95℃; (2)Operating case temperature, Tc: -40 to +85℃; (3)Power supply voltage, Vcc: 0 to +4.0 V; (4)Transmitter differential input voltage, VD: 2.5 VP-P; (5)Relative humidity, RH: 5 to 95 %.
Features
JSH-01LWAA1 features: (1)Compliant to 10 G link specifications; (2)Uses a highly reliable, 1310 nm distributed-feedback laser; (3)Lead-free and RoHS 6/6-compliant, with allowed exemptions; (4)Commercial case operating temperature of 0 to 70℃; extended temperature operation up to 85℃; (5)Single 3.3 V power supply; (6)Low power consumption (typically 695 mW); (7)Bit error rate < 1 x 10-12; (8)Hot pluggable.

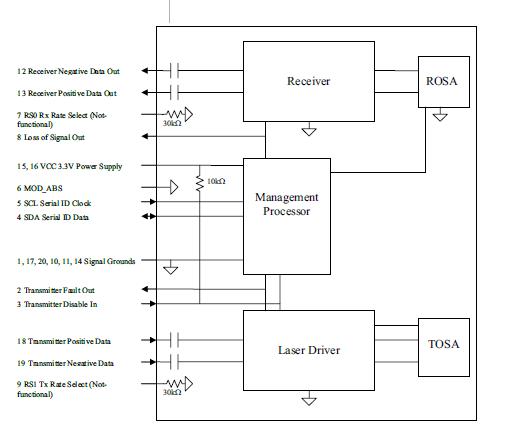

Diagrams
