Product Summary
The K4T1G084QA-ZCE6 is a 1Gb DDR2 SDRAM organized as a 32Mbit x 4 I/Os x 8 banks, 16Mbit x 8 I/Os x 8banks or 8Mbit x 16 I/Os x 8 banks device. This synchronous device achieves high speed double data-rate transfer rates of up to 667Mb/sec/pin (DDR2-667) for general applications. The chip is designed to comply with the following key DDR2 SDRAM features such as posted CAS with additive latency, write latency = read latency - 1, Off-Chip Driver(OCD) impedance adjustment and On Die Termination.
Parametrics
K4T1G084QA-ZCE6 absolute maximum ratings: (1)VDD, Voltage on VDD pin relative to VSS: - 1.0 V ~ 2.3 V; (2)VDDQ, Voltage on VDDQ pin relative to VSS: - 0.5 V ~ 2.3 V; (3)VDDL, Voltage on VDDL pin relative to VSS: - 0.5 V ~ 2.3 V; (4)VIN, VOUT, Voltage on any pin relative to VSS: - 0.5 V ~ 2.3 V; (5)TSTG, Storage Temperature: -55 to +100℃.
Features
K4T1G084QA-ZCE6 features: (1)JEDEC standard 1.8V-0.1V Power Supply; (2)VDDQ = 1.8V ±0.1V; (3)200 MHz fCK for 400Mb/sec/pin, 267MHz fCK for 533Mb/sec/; (4)pin, 333MHz fCK for 667Mb/sec/pin; (5)8 Banks; (6)Posted CAS; (7)Programmable CAS Latency: 3, 4, 5; (8)Programmable Additive Latency: 0, 1 , 2 , 3 and 4; (9)Write Latency(WL) = Read Latency(RL) -1; (10)Burst Length: 4 , 8(Interleave/nibble sequential); (11)Programmable Sequential / Interleave Burst Mode; (12)Bi-directional Differential Data-Strobe (Single-ended datastrobe; (13)is an optional feature); (14)Off-Chip Driver(OCD) Impedance Adjustment; (15)On Die Termination; (16)Special Function Support, PASR(Partial Array Self Refresh); 50ohm ODT; High Temperature Self-Refresh rate enable; (17)Average Refresh Period 7.8us at lower than TCASE 85℃, 3.9us at 85℃ < TCASE < 95℃; (18)Package: 68ball FBGA - 256Mx4/128Mx8 , 84ball FBGA -64Mx16; (19)All of Lead-free products are compliant for RoHS.

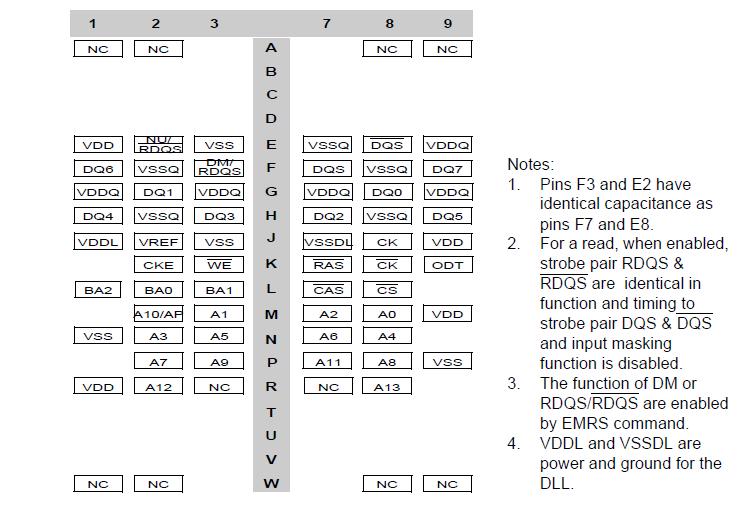

Diagrams
