Product Summary
The K9F5608U0D-PCB0 is a 264Mbit(276,824,064 bit) memory organized as 65,536 rows(pages) by 528 columns.The K9F5608U0D-PCB0 has addresses multiplexed into 8 I/Os.The K9F5608U0D-PCB0 includes one block sized OTP(One Time Programmable) , which can be used to increase system security or to provide identification capabilities.
Parametrics
K9F5608U0D-PCB0 absolute maximum ratings: (1) Voltage on any pin relative to VSS, VIN/OUT: -0.6 to 4.6V, Vcc: -0.6 to 4.6V, VCCQ: -0.6 to 4.6V; (2) Temperature Under Bias TBIAS: -10°C to +125°C; (3) Storage Temperature Tstg: -65°C to +150°C; (4) Short Circuit Current Ios: 5mA.
Features
K9F5608U0D-PCB0 features: (1) Voltage Supply: 2.7 ~ 3.6 V; (2) Automatic Program and Erase; (3) Fast Write Cycle Time; (4) Command/Address/Data Multiplexed I/O Port; (5) Hardware Data Protection; (6) Unique ID for Copyright Protection.

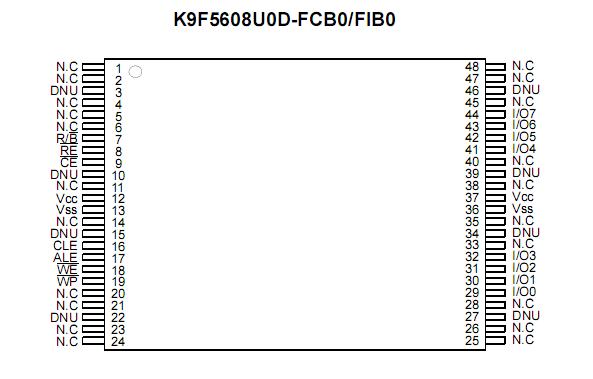

Diagrams
