Product Summary

The LTC1760CFW is a highly integrated level 3 battery charger and selector intended for products using dual smart batteries. Three SMBus inter-faces allow the LTC1760 to servo to the internal voltageand currents measured by the batteries while allowing an SMBus Host to monitor either battery status. Applications of the LTC1760CFW include: Portable Computers and Instruments, Standalone Dual Smart Battery Chargers and Battery Backup Systems.

Parametrics

LTC1760CFW absolute maximum ratings: (1) Voltage from DCIN, SCP, SCN, CLP, VPLUS, SW to GND: 32V/-0.3V; (2) Voltage from SCH1, SCH2 to GND: 28V/-0.3V; (3) Voltage from BOOST to GND: 37V/ -0.3V; (4) CSP, CSN, BAT1, BAT2 to GND: 28V/-0.3V; (5) LOPWR, DCDIV to GND: 10V/-0.3V; (6) Voltage from VCC2, VDDS to GND: 7V/-0.3V; (7) Operating Ambient Temperature: 0 °C to 70 °C; (8) Operating Junction Temperature: -40°C to 125°C; (9) Storage Temperature: -65°C to 150°C; (10) Lead Temperature (Soldering, 10 sec) : 300°C.

Features

LTC1760CFW features: (1) SMBus Charger/Selector for Two Smart Batteries; (2) Voltage and Current Accuracy within 0.2% of Value Reported by Battery; (3) Simplifies Construction of Smart Battery System Manager; (4) Includes All SMBus Charger V1.1 Safety Features; (5) Supports Autonomous Operation without a Host; (6) C Adapter Current Limiting Maximizes Charge Rate; (7) SMBus Accelerator Improves SMBus Timing; (8) Available in 48-Lead TSSOP Package.

Diagrams

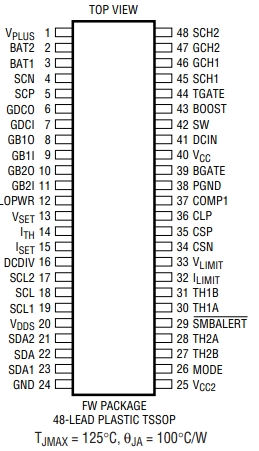

LTC1760CFW Pin Configuration
