MCIMX353DJQ5C

Product Summary

The MCIMX353DJQ5C is a multimedia applications processor. It represent the next generation of ARM11 products with the right performance and integration to address applications within the industrial and consumer markets for applications such as HMI and display controllers. The MCIMX353DJQ5C do not include a graphics processing unit (GPU). For information on the MCIMX353DJQ5C for automotive applications, please refer to document number. The MCIMX353DJQ5C takes advantage of the ARM1136JF-S core running at 532 MHz that is boosted by a multi-level cache system and integrated features such as LCD controller, Ethernet, and graphics acceleration for creating rich user interfaces.

Parametrics

MCIMX353DJQ5C absolute maximum ratings: (1)Supply voltage (core), VDDmax: -0.5 to 1.47 V; (2)Supply voltage (I/O), NVCCmax: –0.5 to 3.6 V; (3)Input voltage range, VImax: –0.5 to 3.6 V; (4)Storage temperature, Tstorage: –40 to 125 ℃; (5)ESD damage immunity: Human body model (HBM): 2000 V; Charge device model (CDM): 500 V.

Features

MCIMX353DJQ5C features: (1)2 controller area network (CAN)interfaces; (2)2 SDIO/MMC interfaces, 1 SDIO/CE-ATA interface; (3)32-bit mobile DDR, DDR2 (4-bank architecture), and SDRAM (up to 133 MHz); (4)2 configurable serial peripheral interfaces (CSPI)(up to 52 Mbps each); (5)Enhanced serial audio interface (ESAI); (6)2 synchronous serial interfaces (SSI); (7)Ethernet MAC 10/100 Mbps; (8)1 USB 2.0 host with ULPI interface or internal full-speed PHY. Up to 480 Mbps if external HS PHY is used; (9)1 USB 2.0 OTG (up to 480 Mbps)controller with internal high-speed OTG PHY; (10)Flash controller—MLC/SLC NAND and NOR; (11)GPIO with interrupt capabilities; (12)3 I2C modules (up to 400 Kbytes each); (13)JTAG; (14)Key pin port; (15)Asynchronous sample rate converter (ASRC); (16)1-Wire; (17)Parallel camera sensor (4/8/10/16-bit data port for video color models: YCC, YUV, 30 Mpixels/s); (18)Parallel display (primary up to 24-bit, 1024 x 1024).

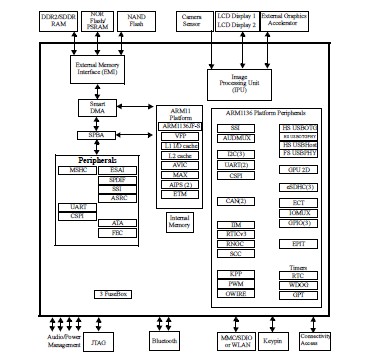

Diagrams
