Product Summary

The MPC8321VRAFDC is a cost-effective, highly integrated communications processor that addresses the requirements of several networking applications, including ADSL SOHO and residential gateways, modem/routers, industrial control, and test and measurement applications. The MPC8321VRAFDC extends current PowerQUICC offerings, adding higher CPU performance, additional functionality, and faster interfaces, while addressing the requirements related to time-to-market, price, power consumption, and board real estate.

Parametrics

MPC8321VRAFDC absolute maxing ratings: (1)Core supply voltage VDD: –0.3 to 1.26 V; (2)PLL supply voltage AVDDn: –0.3 to 1.26 V; (3)DDR1 and DDR2 DRAM I/O voltage GVDD: –0.3 to 2.75 V/–0.3 to 1.98 V; (4)PCI, local bus, DUART, system control and power management, I2C, SPI, MII, RMII, MII management, and JTAG I/O voltage OVDD: –0.3 to 3.6 V; (5)Input voltage DDR1/DDR2 DRAM signals MVIN: –0.3 to (GVDD + 0.3) V; (6)Storage temperature range TSTG: –55 to 150 ℃.

Features

MPC8321VRAFDC features: (1)Single platform architecture supports the convergence of IP packet networks and ATM networks; (2)DDR1/DDR2 memory controller-one 32-bit interface at up to 266 MHz supporting both DDR1 and DDR2; (3)An e300c2 core built on Power Architecture technology with 16-Kbyte instruction and data caches, and dual integer units.

Diagrams

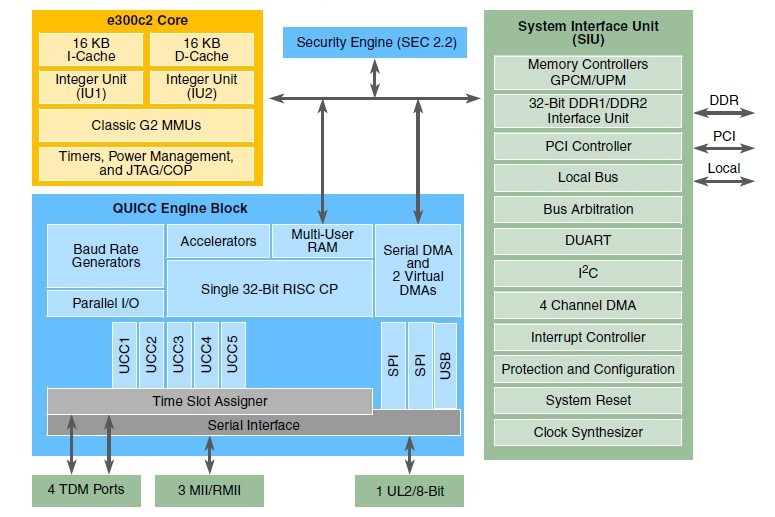

MPC8321VRAFDC block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MPC8321VRAFDC
MPC8321VRAFDC

Freescale Semiconductor

Microprocessors (MPU) 8321 NOPB PBGA W/O ENCR

Data Sheet

0-1: $14.62
1-25: $12.59
25-50: $12.09
50-100: $9.79
