Product Summary
The MT46H128M16LFCK-6 is a 2Gb Mobile low-power DDR SDRAM. The MT46H128M16LFCK-6 is internally configured as a quad-bank DRAM. Each of the x16’s 536,870,912-bit banks is organized as 16,384 rows by 2048 columns by 16 bits. Each of the x32 536,870,912-bit banks is organized as 16,384 rows by 1024 columns by 32 bits. In the reduced page-size (LG) option, each of the x32 536,870,912-bit banks is organized as 32,768 rows by 512 columns by 32 bits. In the reduced page-size (R4) option, each of the x16 536,870,912-bit banks is organized as 32,768 rows by 1024 columns x 16 bits.
Parametrics
MT46H128M16LFCK-6 absolute maximum ratings: (1)VDD/VDDQ supply voltage relative to VSS: -1V to +2.4V; (2)Voltage on any pin relative to VSS: -0.5 to +2.4V; (3)Storage temperature (plastic) TSTG: -55 to 150℃.
Features
MT46H128M16LFCK-6 features: (1)VDD/VDDQ = 1.70-1.95V; (2)Bidirectional data strobe per byte of data (DQS); (3)Internal, pipelined double data rate (DDR) architecture; two data accesses per clock cycle; (4)Differential clock inputs (CK and CK#); (5)Commands entered on each positive CK edge; (6)DQS edge-aligned with data for READs; centeraligned with data for WRITEs; (7)4 internal banks for concurrent operation; (8)Data masks (DM) for masking write data; one mask per byte; (9)Programmable burst lengths (BL): 2, 4, 8, or 16; (10)Concurrent auto precharge option is supported; (11)Auto refresh and self refresh modes; (12)1.8V LVCMOS-compatible inputs; (13)Temperature-compensated self refresh (TCSR); (14)Partial-array self refresh (PASR); (15)Deep power-down (DPD); (16)Status read register (SRR); (17)Selectable output drive strength (DS); (18)Clock stop capability; (19)64ms refresh; 32ms for the automotive temperature range.

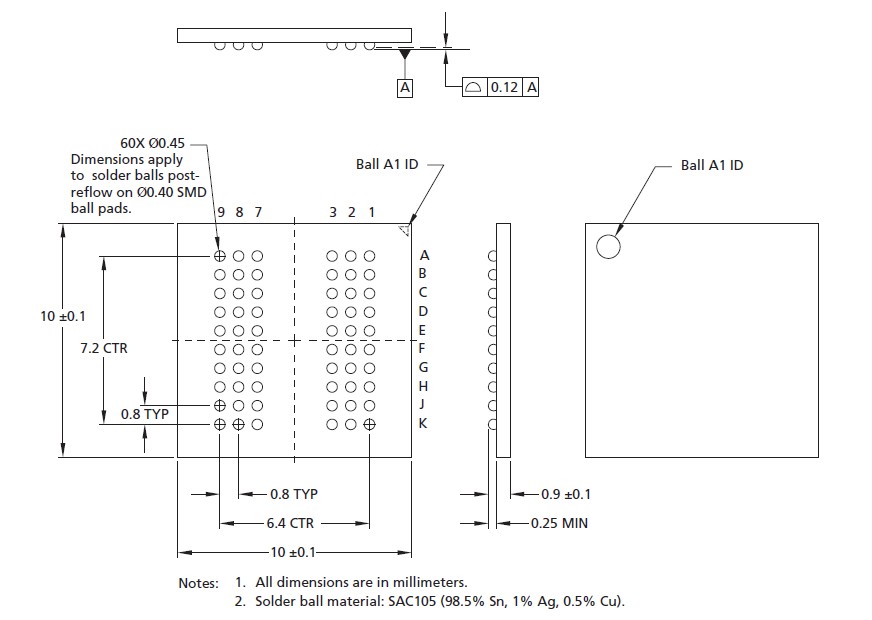

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

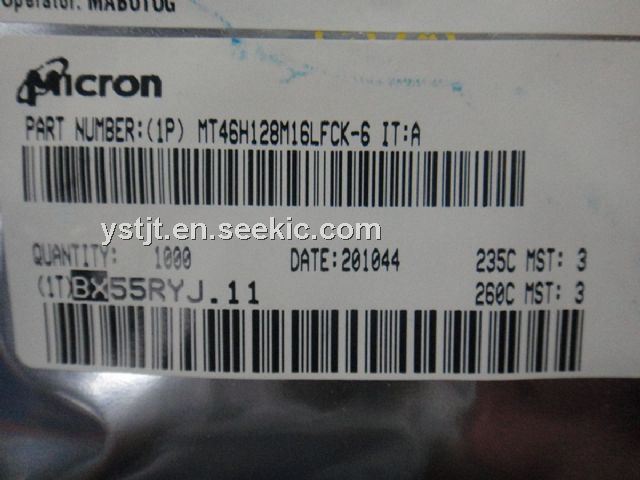

 MT46H128M16LFCK-6 IT:A |
|
IC DDR SDRAM 2GB 200MHZ 60VFBGA |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
MT46H128M16LFCK-5 IT:A |
|
IC DDR SDRAM 2GB 200MHZ 60VFBGA |
Data Sheet |
|
|
||||||
|
MT46H128M16LFCK-6 IT:A |
|
IC DDR SDRAM 2GB 200MHZ 60VFBGA |
Data Sheet |
|
|
||||||
|
MT46H128M32L2KQ-5 IT:A |
|
MOBILE LPDDR 1.8V 200MHZ 5NS |
Data Sheet |
|
|
||||||
|
MT46H128M32L2MC-5 IT:A |
|
IC DDR SDRAM 2GB 200MHZ 240WFBGA |
Data Sheet |
|
|
||||||
|
MT46H128M32L2MC-6 IT:A |
|
IC DDR SDRAM 2GB 200MHZ 240WFBGA |
Data Sheet |
|
|
||||||
|
MT46H16M16LF 4 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
