Product Summary

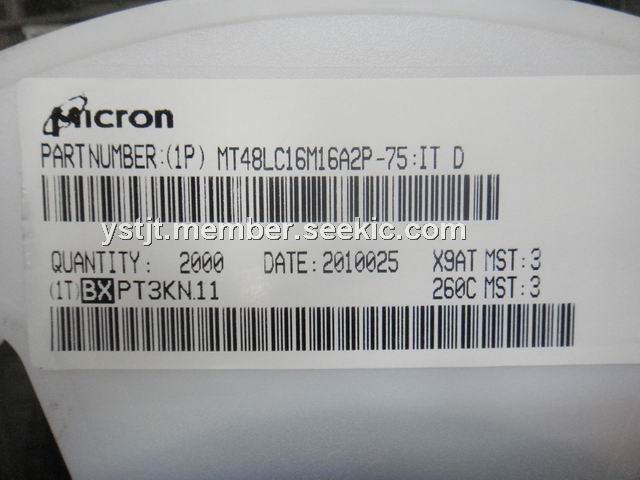

The MT48LC16M16A2P-75IT is a 256Mb SDRAM which is a high-speed CMOS, dynamic random-access memory containing 268,435,456 bits. The MT48LC16M16A2P-75IT is internally configured as a quadbank DRAM with a synchronous interface (all signals are registered on the positive edge of the clock signal, CLK).
Parametrics
MT48LC16M16A2P-75IT absolute maximum ratings: (1)Voltage on VDD, VDDQ Supply Relative to VSS: -1V to +4.6V; (2)Voltage on Inputs, NC or I/O Pins Relative to VSS: -1V to +4.6V; (3)Operating Temperature, TA (commercial): 0℃ to +70℃; (4)Operating Temperature, TA (industrial "IT"): -40℃ to +85℃; (5)Storage Temperature (plastic): -55℃ to +150℃; (6)Power Dissipation: 1W.
Features
MT48LC16M16A2P-75IT features: (1)PC66-, PC100-, and PC133-compliant; (2)Fully synchronous; all signals registered on positive edge of system clock; (3)Internal pipelined operation; column address can be changed every clock cycle; (4)Internal banks for hiding row access/precharge; (5)Programmable burst lengths: 1, 2, 4, 8, or full page; (6)Auto Precharge, includes CONCURRENT AUTO PRECHARGE, and Auto Refresh Modes.

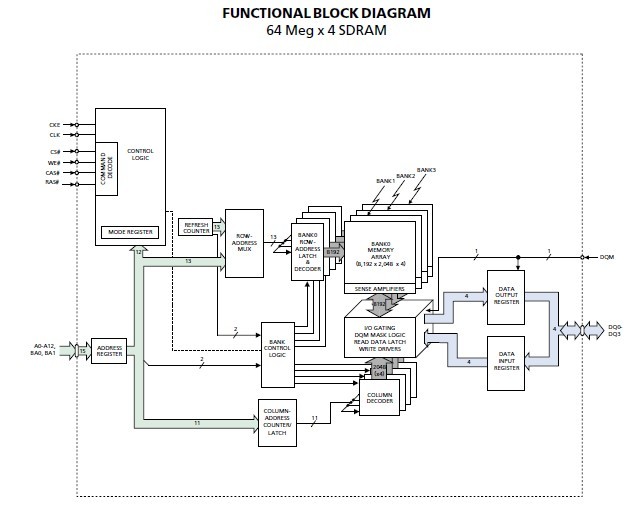

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MT48LC16M16A2P-75IT |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||
