Product Summary

The MX25L3206EM2I-12G is a 32M-bit [×1/×2] CMOS serial flash memory. The MX25L3206EM2I-12G features a serial peripheral interface and software protocol allowing operation on a simple 3-wire bus. The three bus signals are a clock input (SCLK), a serial data input (SI), and a serial data output (SO). Serial access to the device is enabled by CS# input. When it is in Dual Output read mode, the SI and SO pins become SIO0 and SIO1 pins for data output. The MX25L3206EM2I-12G provides sequential read operation on whole chip.

Parametrics

MX25L3206EM2I-12G absolute maximum ratings: (1)Ambient Operating Temperature, Industrial grade: -40℃ to 85℃; (2)Storage Temperature: -55℃ to 125℃; (3)Applied Input Voltage: -0.5V to 4.6V; (4)Applied Output Voltage: -0.5V to 4.6V; (5)VCC to Ground Potential: -0.5V to 4.6V.

Features

MX25L3206EM2I-12G features: (1)Single Power Supply Operation - 2.7 to 3.6 volt for read, erase, and program operations; (2)Serial Peripheral Interface compatible-Mode 0 and Mode 3; (3)33,554,432 x 1 bit structure or 16,777,216 x 2 bits (Dual Output mode) structure; (4)1024 Equal Sectors with 4K byte each - Any Sector can be erased individually; (5)64 Equal Blocks with 64K byte each - Any Block can be erased individually; (6)Program Capability, Byte base; Page base (256 bytes); (7)Latch-up protected to 100mA from -1V to Vcc +1V.

Diagrams

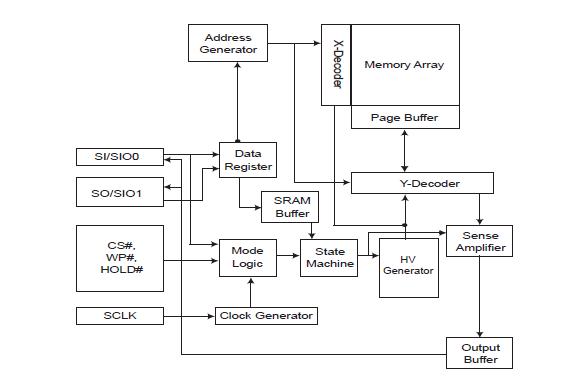

MX25L3206EM2I-12G block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MX25L3206EM2I-12G
MX25L3206EM2I-12G


IC FLASH SER 3V 32MB 86MHZ 8SOP

Data Sheet

0-1: $0.77
1-10: $0.70
10-50: $0.68
50-100: $0.61
100-250: $0.60
250-500: $0.60
500-1000: $0.57
1000-2500: $0.55
2500-5000: $0.53
